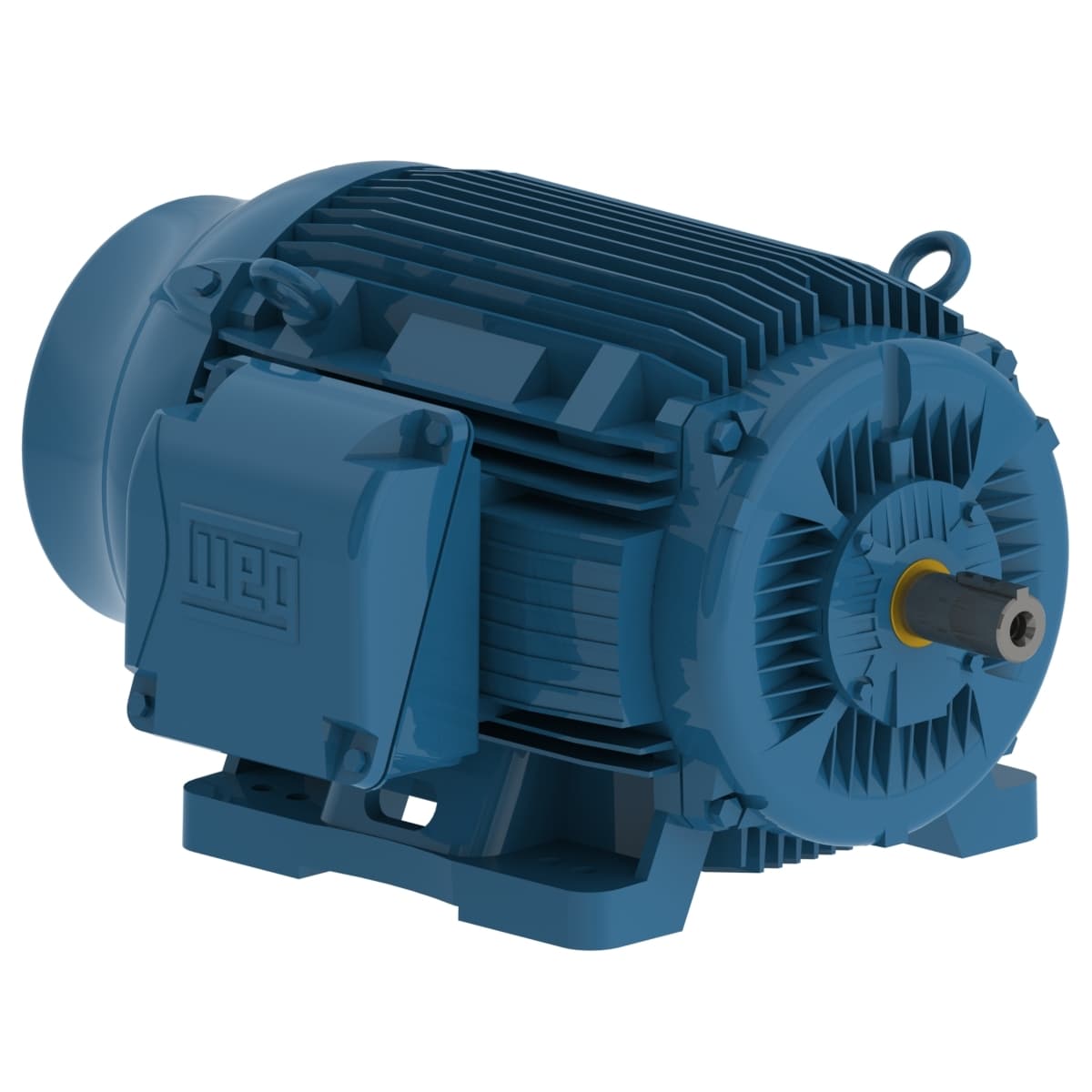

03009ST3QIE364T-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  460 V
• Output Rating
  30 HP
• Rated Speed
  882 rpm
• Flange Type
  Without
• L. R. Amperes
  236 A
• Design
  B
• Degree of Protection
  IP56
• Frame
  364/5T
• Locked rotor time
  45s (cold) 25s (hot)
• Duty Cycle
  Cont.(S1)
• Voltage
  460 V
• Output
  30 HP (22 kW)
• Rated torque
  179 ft.lb
• Service factor
  1.25
• Mounting
  F-1
• Noise level²
  60.0 dB(A)
• Rated speed
  882 rpm
• Locked rotor torque
  160 %
• Insulation Class
  F
Standard
NEMA MG-1
Number of Poles
8
LRC
6.2x(Code G)
Moment of inertia (J)
23.5 sq.ft.lb
Rotation¹
Both (CW and CCW)
Terminal box¹
Left position
Rated voltage
460 V
Enclosure
IC411 - TEFC
Synchronous speed
900 rpm
Slip
2.00 %
No load current
16.0 A
Flange
Without
Breakdown torque
229 %
Starting Method
Direct On Line
Number of poles
8
Frequency
60 Hz
Temperature rise
80 K
Altitude
1000 m.a.s.l.
Approx. weight³
775 lb
Rated current
38.1 A
Ambient temperature
-20°C to +40°C
Output rating
30 HP
