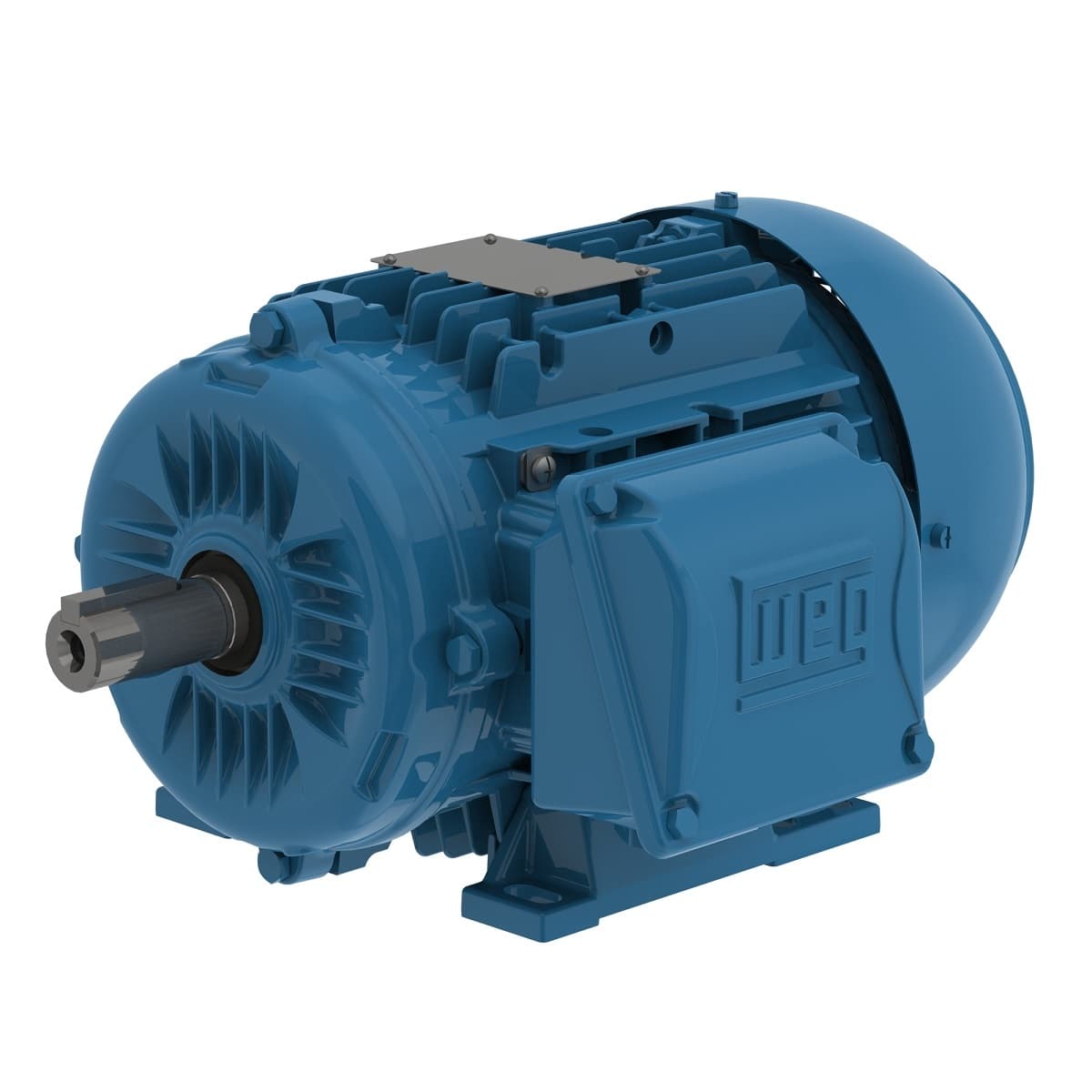

00158ET3HAL90L-W22 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  575 V
• Output Rating
  2 HP
• Rated Speed
  1755 rpm
• Flange Type
  Without
• Output
  2 HP (1.5 kW)
• Rated torque
  5.98 ft.lb
• Degree of Protection
  IP55
• Flange
  Without
• Number of Poles
  4
• Moment of inertia (J)
  0.1566 sq.ft.lb
• Altitude
  1000 m.a.s.l.
• Synchronous speed
  1800 rpm
• Rated speed
  1755 rpm
• Breakdown torque
  350 %
• Mounting
  B3L(E)
• Terminal box¹
  Right position
• LRC
  8.3
• Temperature rise
  80 K
• Noise level²
  49.0 dB(A)
Rated voltage
575 V
Design
N
Ambient temperature
-20°C to +40°C
Standard
NEMA MG-1
Rated current
2.26 A
Locked rotor time
25s (cold) 14s (hot)
Starting Method
Direct On Line
Voltage
575 V
Frequency
60 Hz
Insulation Class
F
Output rating
2 HP
Frame
90S/L
No load current
1.24 A
Duty Cycle
S1
Approx. weight³
43.5 lb
L. R. Amperes
18.8 A
Service factor
1.25
Rotation¹
Both (CW and CCW)
Slip
2.50 %
Locked rotor torque
300 %
Enclosure
IC411 - TEFC
Number of poles
4
