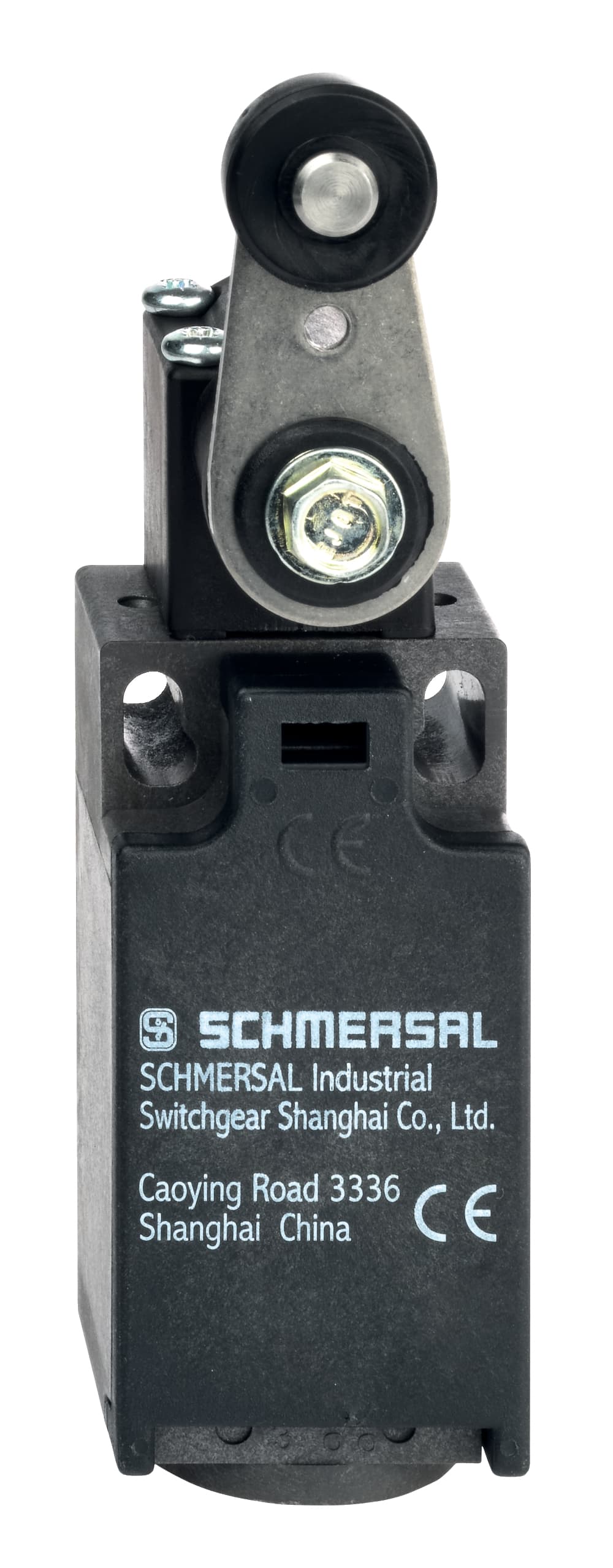

ZV12H 236-11Z-M20 Schmersal Electronic Components
Part#:ZV12H 236-11Z-M20
Alt. Part#:101156131
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Position switch; 236; Snap action with constant contact pressure up to switching point; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; 30 mm x 58,5 mm x 30 mm; Double-in
Product Details
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Mechanical life, minimum 20,000,000 Operations
- Terminal Connector Screw connection
- Height of sensor 108.5 mm
- Gross weight 75 g
- Actuating speed, maximum 1 m/s
- Positive break torque 0.2 Nm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Number of safety contacts 1
- Actuating element Roller lever
- Cable section, maximum 2.5 mm²
- Ambient temperature, minimum -30 °C
- Actuator type to DIN EN 50047 A
- Standards IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
- Lever material Metal film
- Rated insulation voltage Ui 250 V
- Number of auxiliary contacts 1
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated impulse withstand voltage Uimp 6 kV
- Safety functions Yes
- Actuating torque, minimum 0.2 Nm
- Length of sensor 46 mm
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Bounce duration, maximum 3 ms
- Material of the contacts, electrical Silver
- Housing construction form Norm construction design
- Width of sensor 30 mm
- Utilisation category AC-15 4 A
- Ambient temperature, maximum +80 °C
- Switching principle Snap switch element
- Switching element NO contact, NC contact
- Switching frequency 5,000 /h
- Roller material Plastic
- Actuating speed, minimum 687 mm/min
- Cable section, minimum 0.75 mm²
- Utilisation category DC-13 1 A
- Thermal test current 10 A
- Switchover time, maximum 5.5 ms
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ZV12H 236-11Z-M20 on Applied Automation is $124.00. Order now.
