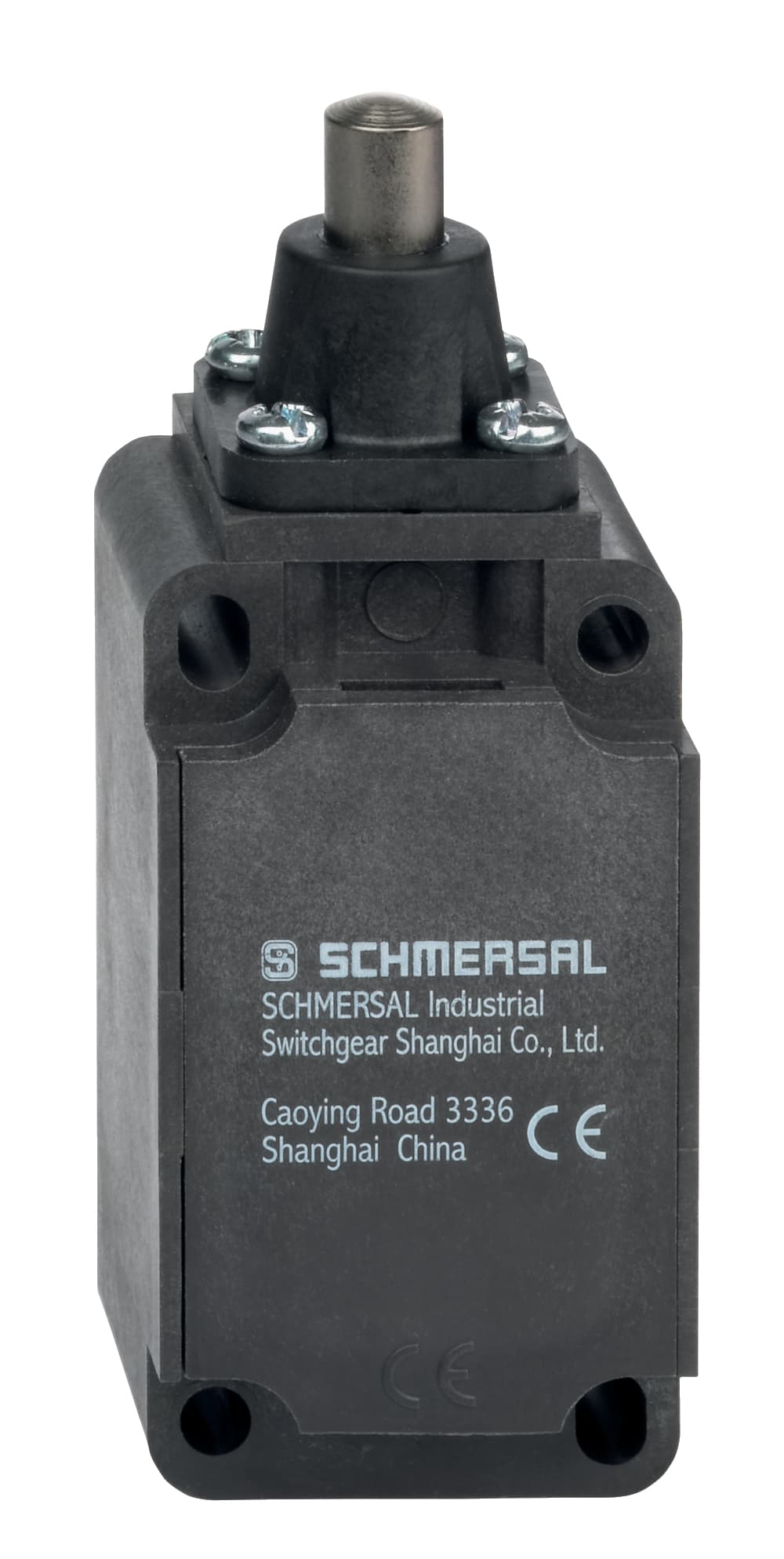

TS 336-11Z-M20 Schmersal Electronic Components
Part#:TS 336-11Z-M20
Alt. Part#:101155769
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Position switch; 336; 1 Cable entry M 20 x 1.5; Design to EN 50041; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; Actuator heads can be repositioned by 4 x 90°
Product Details
- Material of the contacts, electrical Silver
- Note (Switchover time) Switchover time in accordance with actuating speed
- Ambient temperature, maximum +80 °C
- Utilisation category AC-15 4 A
- Housing construction form Norm construction design
- Terminal Connector Screw connection
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Utilisation category DC-13 4 A
- Safety functions Yes
- Number of auxiliary contacts 1
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Thermal test current 10 A
- Switching frequency 5,000 /h
- Actuating element Plunger
- Actuating force, minimum 17 N
- Width of sensor 40.5 mm
- Number of safety contacts 1
- Height of sensor 103.5 mm
- Switching principle Creep circuit element
- Bounce duration, maximum 2 ms
- Actuator type to DIN EN 50041 B
- Actuating speed, maximum 0.5 m/s
- Rated impulse withstand voltage Uimp 6 kV
- Ambient temperature, minimum -30 °C
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Mechanical life, minimum 30,000,000 Operations
- Cable section, maximum 2.5 mm²
- Length of sensor 38 mm
- Switching element NO contact, NC contact
- Gross weight 100 g
- Cable section, minimum 0.75 mm²
- Rated insulation voltage Ui 500 V
- Required rated short-circuit current to EN 60947-5-1 1,000 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TS 336-11Z-M20 on Applied Automation is $93.00. Order now.
