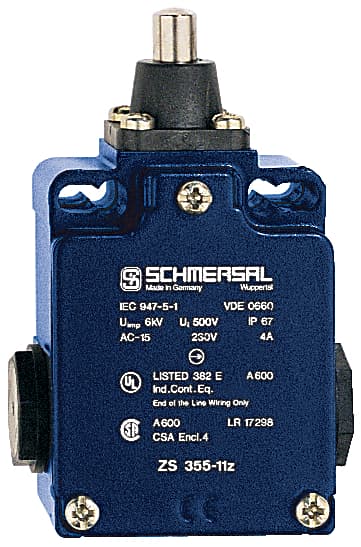

TS 336-02Z-M20 Schmersal Electronic Components

Product Details

• Gross weight
  100 g
• Cable section, maximum
  2.5 mm²
• Actuator type to DIN EN 50041
  B
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Bounce duration, maximum
  2 ms
• Actuating force, minimum
  17 N
• Length of sensor
  38 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Switching frequency
  5,000 /h
• Actuating element
  Plunger
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Width of sensor
  40.5 mm
• Actuating speed, maximum
  0.5 m/s
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Ambient temperature, minimum
  -30 °C
• Utilisation category AC-15
  4 A
• Terminal Connector
  Screw connection
• Thermal test current
  10 A
• Material of the contacts, electrical
  Silver
• Mechanical life, minimum
  30,000,000 Operations
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Utilisation category DC-13
4 A
Number of safety contacts
2
Height of sensor
103.5 mm
Switching element
Opener (NC)
Cable section, minimum
0.75 mm²
Rated insulation voltage Ui
500 V
Note (Switchover time)
Switchover time in accordance with actuating speed
Safety functions
Yes
Housing construction form
Norm construction design
Ambient temperature, maximum
+80 °C
Switching principle
Creep circuit element
