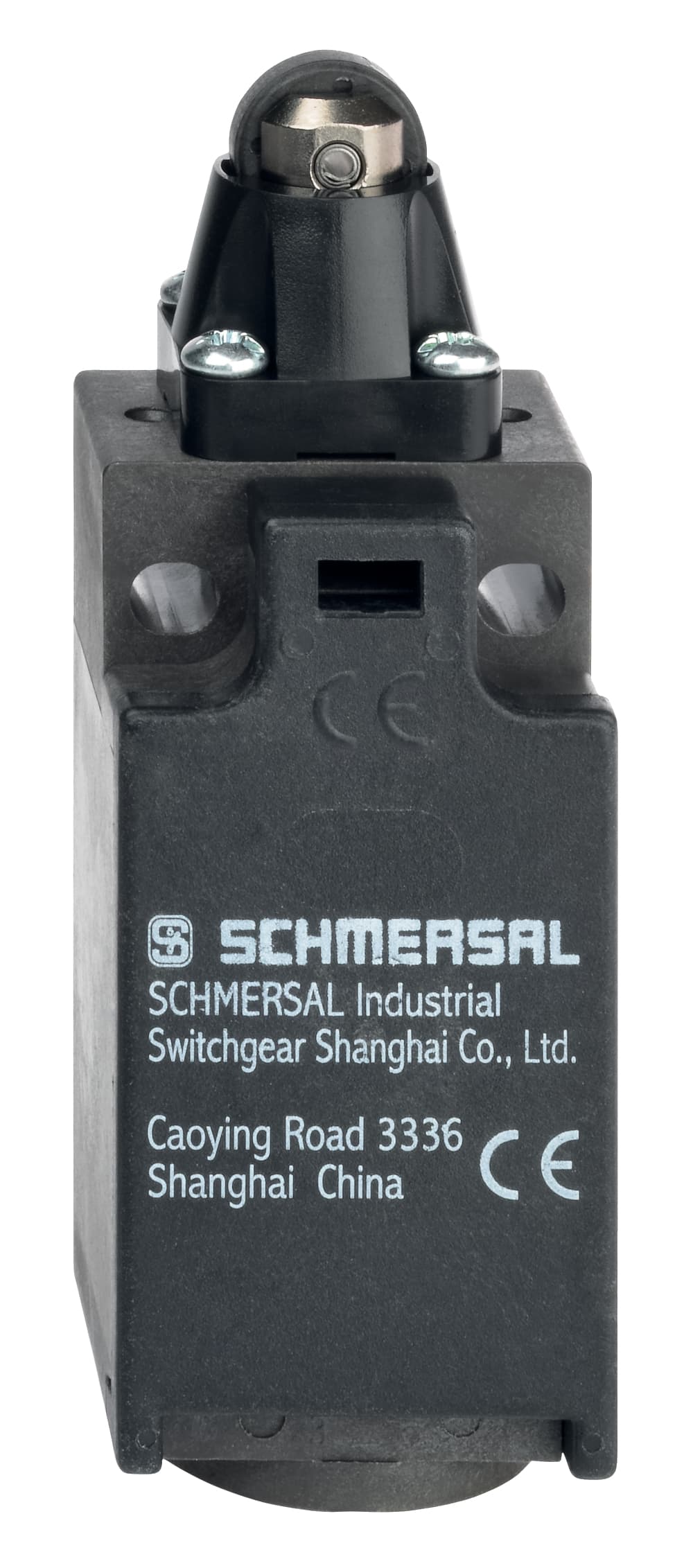

TR 236-11Z-M20 Schmersal Electronic Components

Product Details

• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Actuating element
  Roller plunger
• Terminal Connector
  Screw connection
• Width of sensor
  30 mm
• Rated insulation voltage Ui
  250 V
• Number of auxiliary contacts
  1
• Actuating speed, maximum
  1 m/s
• Cable section, minimum
  0.75 mm²
• Ambient temperature, minimum
  -30 °C
• Switching element
  NO contact, NC contact
• Gross weight
  55 g
• Actuating force, minimum
  9 N
• Cable section, maximum
  2.5 mm²
• Ambient temperature, maximum
  +80 °C
• Number of safety contacts
  1
• Actuating speed, minimum
  120 mm/min
• Length of sensor
  30 mm
• Thermal test current
  10 A
• Utilisation category DC-13
  1 A
• Actuator type to DIN EN 50047
  c
Mechanical life, minimum
20,000,000 Operations
Note (Switchover time)
Switchover time in accordance with actuating speed
Height of sensor
84 mm
Utilisation category AC-15
4 A
Material of the contacts, electrical
Silver
Positive break force, minimum
19 N
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Rated impulse withstand voltage Uimp
6 kV
Switching frequency
5,000 /h
Standards
IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
Safety functions
Yes
Note Bounce duration
Bounce duration in accordance with actuating speed
Required rated short-circuit current to EN 60947-5-1
1,000 A
Switching principle
Creep circuit element
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Housing construction form
Norm construction design
Note (Actuating speed)
Actuating speed with actuating angle 30° to switch axis
