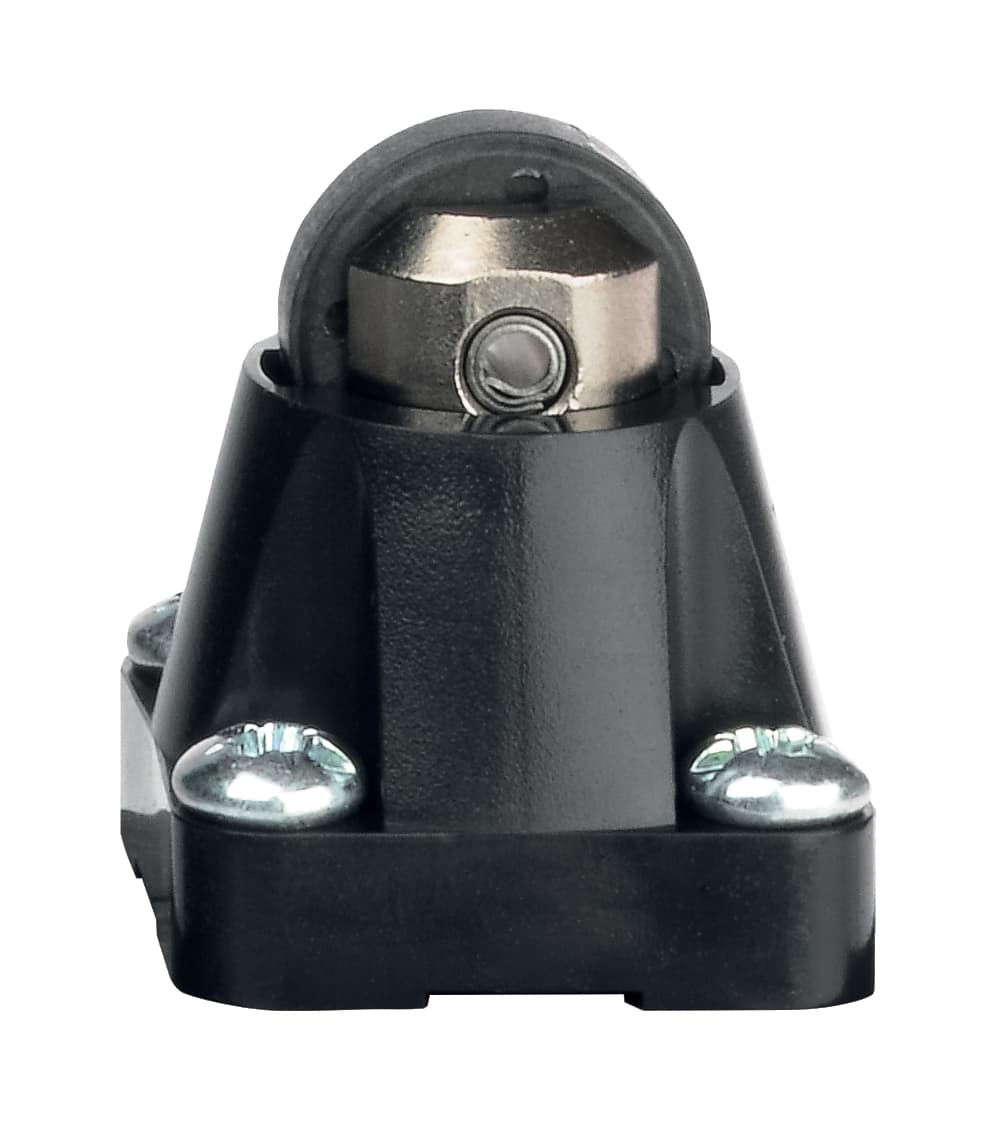

TR 236-20Z Schmersal Electronic Components

Product Details

• Actuating force, minimum
  9 N
• Actuator type to DIN EN 50047
  c
• Note (Switchover time)
  Switchover time in accordance with actuating speed
• Ambient temperature, minimum
  -30 °C
• Rated insulation voltage Ui
  250 V
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Actuating speed, maximum
  1 m/s
• Height of sensor
  84 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Actuating speed, minimum
  120 mm/min
• Actuating element
  Roller plunger
• Number of auxiliary contacts
  2
• Cable section, minimum
  0.75 mm²
• Gross weight
  60 g
• Width of sensor
  30 mm
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Switching principle
  Creep circuit element
• Note (Actuating speed)
  Actuating speed with actuating angle 30° to switch axis
• Mechanical life, minimum
  20,000,000 Operations
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
Utilisation category DC-13
24 VDC
Standards
IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
Cable section, maximum
2.5 mm²
Material of the contacts, electrical
Silver
Ambient temperature, maximum
+80 °C
Switching frequency
5,000 /h
Utilisation category AC-15
4 A
Positive break force, minimum
19 N
Housing construction form
Norm construction design
Length of sensor
30 mm
Thermal test current
10 A
Switching element
Normally open contact (NO)
Terminal Connector
Screw connection
Note Bounce duration
Bounce duration in accordance with actuating speed
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
