TESZ1102/S/45 Schmersal Safety Switches
Part#:TESZ1102/S/45
Alt. Part#:101030531
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

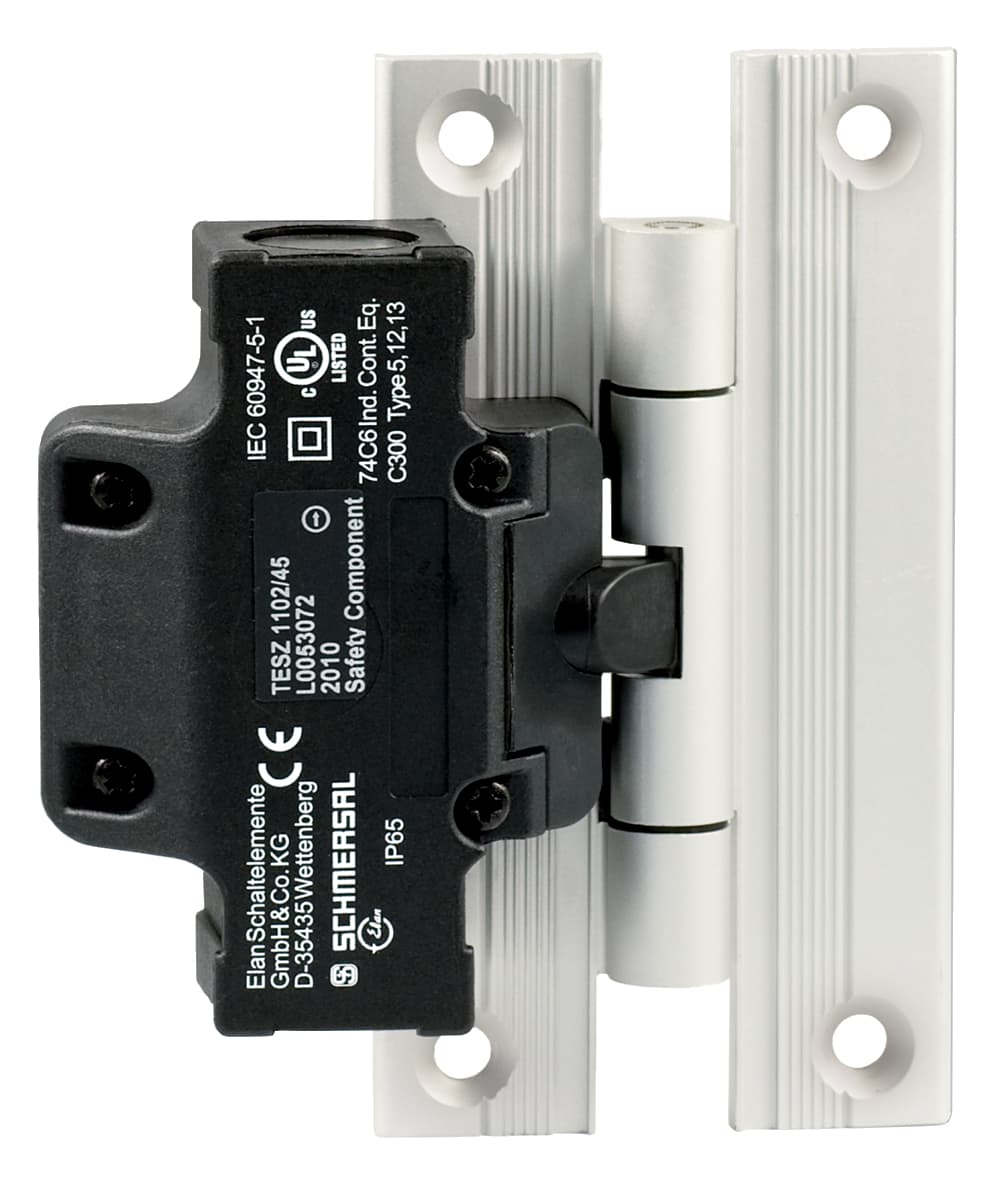

TESZ1102/S/45 Schmersal - Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 45 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
Product Details
- Material of the contacts, electrical Silver
- Standards IEC/EN 60947-5-1, BG-GS-ET-15
- Terminal Connector Screw connection
- Length of sensor 36 mm
- Ambient temperature, maximum +65 °C
- mounting hinge Yes
- Number of auxiliary contacts 1
- Gross weight 300 g
- Number of safety contacts 2
- Positive break force, minimum 1 N
- Cable section, minimum 0.5 mm²
- Cable section, maximum 1 mm²
- Mechanical life, minimum 1,000,000 Operations
- Positive break angle 14 °
- Material of the hinge Aluminium
- Height of sensor 92 mm
- Thermal test current 2.5 A
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Length x Width x Height Suitable for mounting to profile systems: 45 mm
- Rated impulse withstand voltage Uimp 2.5 kV
- Switching element NO contact, NC contact
- Utilisation category AC-15 2 A
- Utilisation category DC-13 24 VDC
- Switching principle Creep circuit element
- Switching frequency 120 /h
- Degree of protection IP65
- Rated insulation voltage Ui 250 V
- Width of sensor 111.5 mm
- Ambient temperature, minimum -25 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TESZ1102/S/45 on Applied Automation is $283.00. Order now.
TESZ1102/S/45 Related Documents
Manufacturer warranty
TESZ1102/S/45 Schmersal
$283.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$283.00
$283.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of TESZ1102/S/45?
Purchase the TESZ1102/S/45 from Applied Automation at the price of $283.00. Order today.
Out if stock but available for backorder.
TESZ1102/S/45 Schmersal - Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 45 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
