TESF/ST24.2/U Schmersal Safety Switches
Part#:TESF/ST24.2/U
Alt. Part#:101182851
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

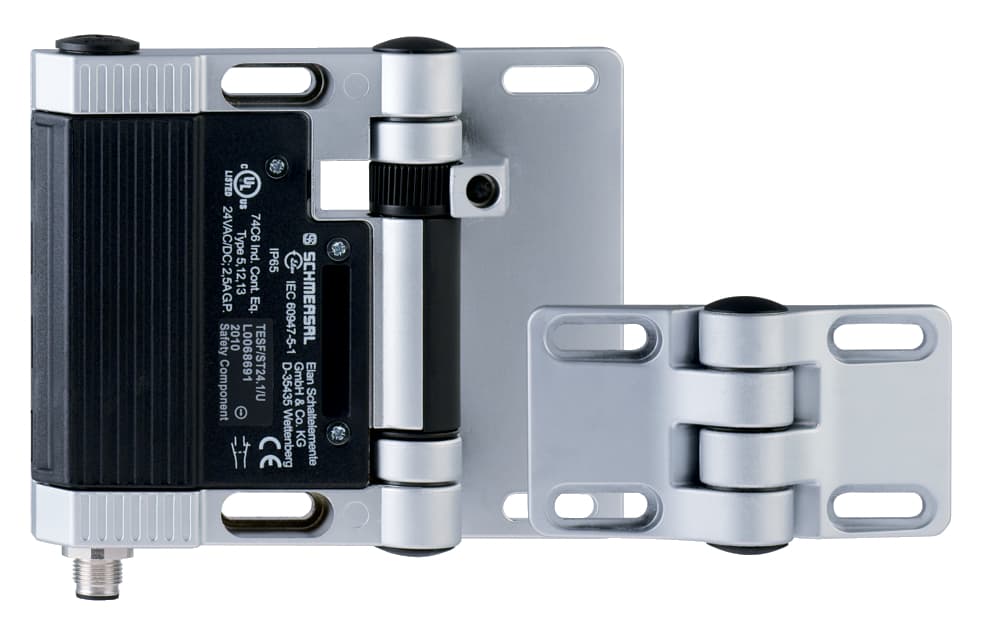

TESF/ST24.2/U Schmersal - Safety switch for hinged guards; Hinge safety switch; 1 cable entries M 16 x 1.5; 1 connector M12, 8-pole; Metal enclosure; Good resistance to oil and petroleum spirit; For left or right hinged doors; 141 mm x 115 mm x 21,5 mm; Simple mounting, suitable f
Product Details
- Material of the contacts, electrical Silver-nickel alloy 10
- Colour of the housing Black
- Terminal Connector Plug-in connection, top
- Utilisation category DC-13 1 A
- Gross weight 840 g
- Height of sensor 115 mm
- Utilisation category AC-15 2 A
- Adjustable switching angle Yes
- Mechanical life, minimum 1,000,000 Operations
- Rated insulation voltage Ui 250 V
- Thermal test current 2.5 A
- Enclosure material Zinc die-cast
- Positive break angle 14 °
- Ambient temperature, minimum -25 °C
- Switching element NO contact, NC contact
- Additional hinge Yes
- Number of safety contacts 2
- Standards EN 60947-5-1, BG-GS-ET-15
- Length of sensor 21.5 mm
- Opening angle 180°
- Degree of protection IP65
- Rated impulse withstand voltage Uimp 0.8 kV
- Ambient temperature, maximum +65 °C
- Switching principle Creep circuit element
- Switching frequency 1,200 /h
- Number of auxiliary contacts 2
- Width of sensor 141 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TESF/ST24.2/U on Applied Automation is $383.00. Order now.
