TESF/U Schmersal Safety Switches
Part#:TESF/U
Alt. Part#:101182694
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

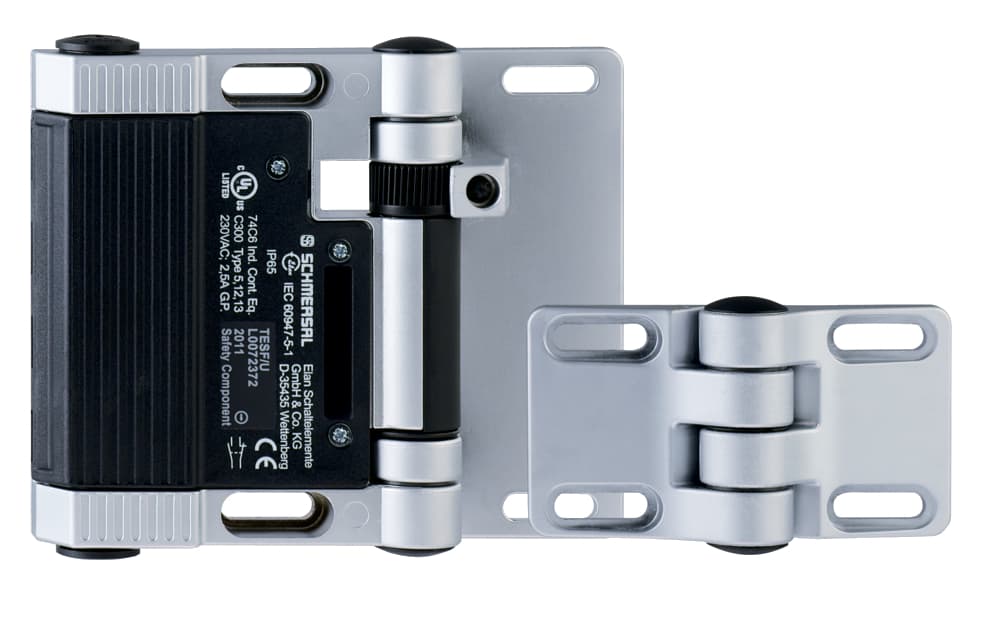

TESF/U Schmersal - Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 16 x 1.5; Metal enclosure; Good resistance to oil and petroleum spirit; For left or right hinged doors; 141 mm x 115 mm x 21,5 mm; Simple mounting, suitable for all conventional profi
Product Details
- Standards EN 60947-5-1, BG-GS-ET-15
- Opening angle 180°
- Degree of protection IP65
- Utilisation category DC-13 1 A
- Number of safety contacts 2
- Colour of the housing Black
- Height of sensor 115 mm
- Gross weight 840 g
- Additional hinge Yes
- Adjustable switching angle Yes
- Mechanical life, minimum 1,000,000 Operations
- Cable section, minimum 0.5 mm²
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Number of auxiliary contacts 2
- Enclosure material Zinc die-cast
- Positive break angle 14 °
- Length of sensor 21.5 mm
- Ambient temperature, minimum -25 °C
- Switching element NO contact, NC contact
- Cable section, maximum 1 mm²
- Switching frequency 1,200 /h
- Utilisation category AC-15 2 A
- Material of the contacts, electrical Silver-nickel alloy 10
- Terminal Connector Screw connection
- Thermal test current 2.5 A
- Width of sensor 141 mm
- Ambient temperature, maximum +65 °C
- Rated insulation voltage Ui 250 V
- Switching principle Creep circuit element
- Rated impulse withstand voltage Uimp 2.5 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TESF/U on Applied Automation is $331.00. Order now.
