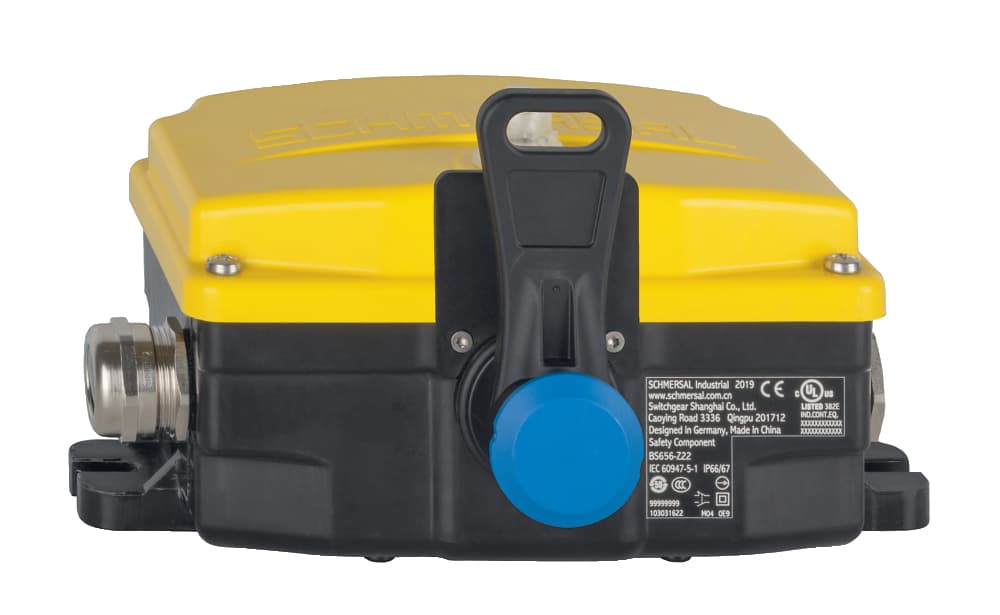

RS655-Z22-G230 Schmersal Safety Switches

Product Details

• Enclosure material
  Grey cast iron, painted
• Gross weight
  6,140 g
• Number of safety contacts
  2
• Material of the contacts, electrical
  Silver
• Mechanical life, minimum
  100,000 Operations
• Actuating element
  Roller lever N300
• Cable section, minimum
  0.5 mm², flexible
• Ambient temperature, minimum
  -25 °C
• Thermal test current
  6 A
• Utilisation category AC-15
  3 A
• Material of the cover
  Grey cast iron, painted
• Length of the wire, maximum
  100 m
• Terminal Connector
  Spring pulley connection
• Cable entry
  2 x M25 x 1.5
• Ambient temperature, maximum
  +60 °C
• Protection rating
  I
• Switching principle
  Snap switch element
• Degree of protection
  IP66 to EN 60529, IP67 to EN 60529
• Cable section, maximum
  2.5 mm², flexible
• Utilisation category DC-13
  24 VDC
Indicator lamp
Yes
Rated impulse withstand voltage Uimp
4 kV
Standards
IEC 60947-5-1, IEC 60947-5-5, ISO 13850
Actuation direction
Each time 75° right-hand side and left-hand side rotation
Degree of pollution to IEC/EN 60947-1
3
Number of signal lamps
1
Number of auxiliary contacts
2
Rated insulation voltage Ui
300 V
