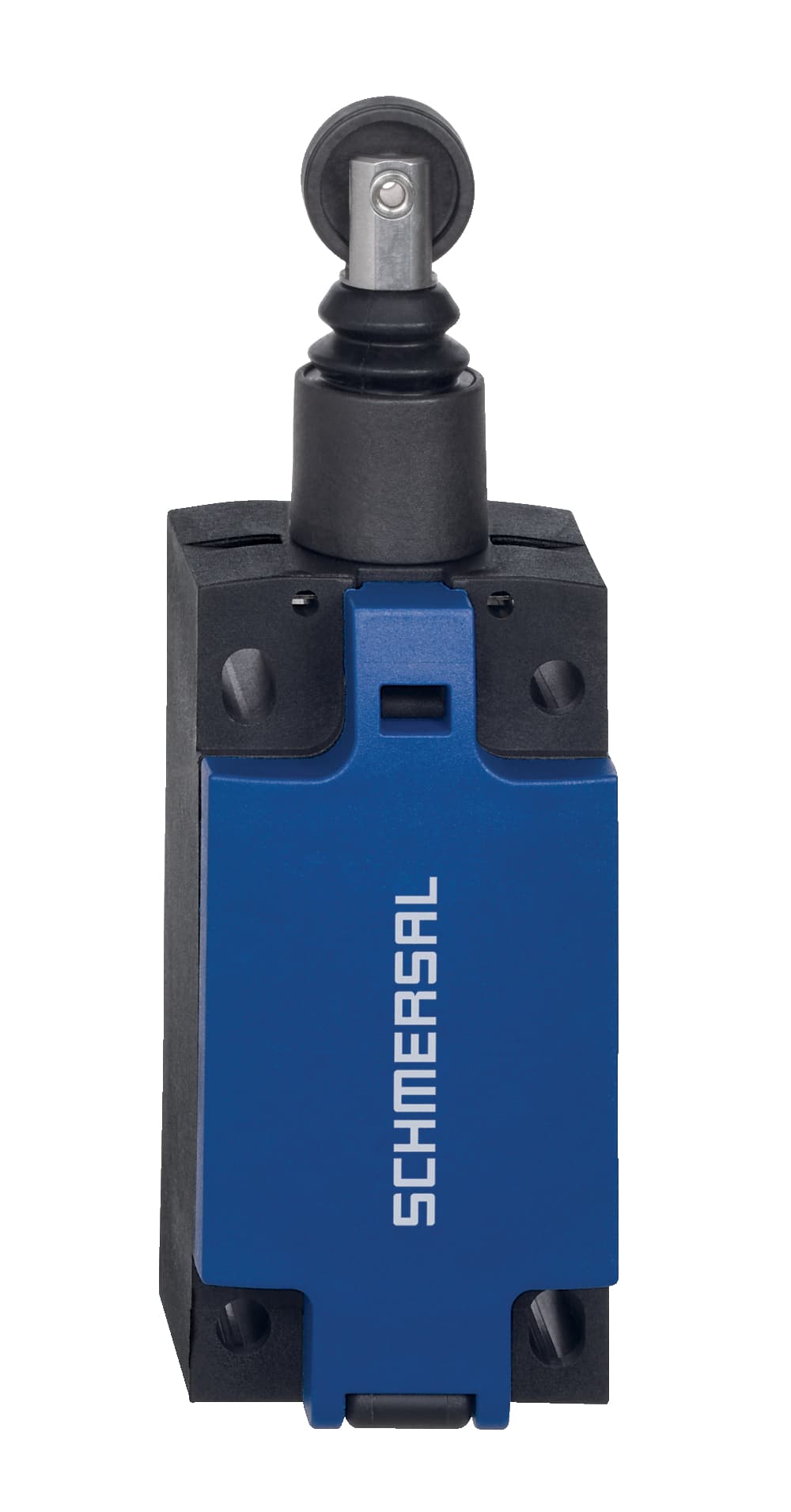

PS316-Z02-R300 Schmersal Safety Switches

Product Details

• Utilisation category AC-15
  240 VAC
• Utilisation category DC-13
  3 A
• Switching element
  2 NC contact
• Cable section, minimum
  0.34 mm²
• Material of the contacts, electrical
  Silver
• Actuating speed, maximum
  0.5 m/s
• Switching principle
  Snap switch element
• Switching frequency
  5,000 /h
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Rated insulation voltage Ui
  300 V
• Rated impulse withstand voltage Uimp
  4 kV
• Ambient temperature, maximum
  +80 °C
• Thermal test current
  10 A
• Ambient temperature, minimum
  -30 °C
• Width of sensor
  41 mm
• Height of sensor
  117 mm
• Degree of protection
  IP66, IP67
• Length of sensor
  37 mm
• Safety functions
  Yes
• Enclosure material
  Plastic, glass-fibre-reinforced
Cable section, maximum
1.5 mm²
Gross weight
111.7 g
Actuating element
Roller plunger S300
Housing construction form
Norm construction design
Terminal Connector
Screw connection
Standards
IEC 60947-5-1
Positive break force, minimum
50 N
Actuating speed, minimum
10 mm/min
Mechanical life, minimum
10,000,000 Operations
Actuator type to DIN EN 50047
c
Number of safety contacts
2
