PS315-T11-N300 Schmersal Safety Switches

PS315-T11-N300 on Applied Automation
Schmersal

Part#:PS315-T11-N300

Alt. Part#:103015125

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

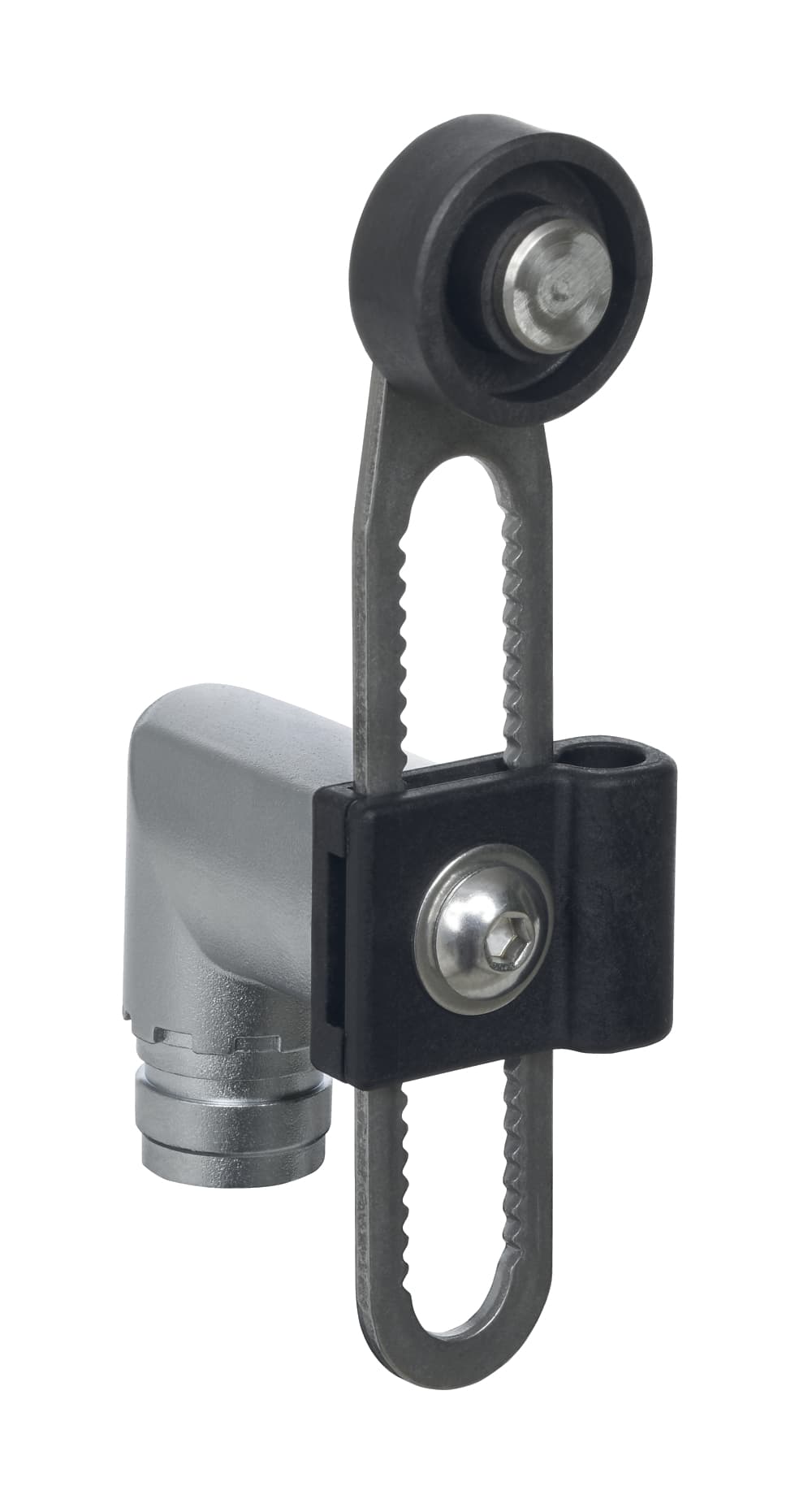

PS315-T11-N300 Schmersal - Position switch; PS315; Metal enclosure; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041; Lever angle adjustable in 15° steps; lengt

Product Details

  • Roller material
    Plastic
  • Actuating speed, minimum
    60 mm/min
  • Ambient temperature, minimum
    -30 °C
  • Switching principle
    Creep circuit element
  • Gross weight
    338 g
  • Actuating speed, maximum
    0.5 m/s
  • Degree of protection
    IP66, IP67
  • Enclosure coating material
    painted
  • Cable section, minimum
    0.34 mm²
  • Height of sensor
    168 mm
  • Utilisation category AC-15
    3 A
  • Standards
    IEC 60947-5-1
  • Actuating element
    Roller lever N300
  • Rated impulse withstand voltage Uimp
    4 kV
  • Switching frequency
    5,000 /h
  • Housing construction form
    Norm construction design
  • Material of the contacts, electrical
    Silver
  • Mechanical life, minimum
    10,000,000 Operations
  • Enclosure material
    Metal, zinc die-cast
  • Cable section, maximum
    1.5 mm²
  • Number of safety contacts
    1
  • Rated insulation voltage Ui
    300 V
  • Utilisation category DC-13
    3 A
  • Safety functions
    Yes
  • Positive break force, minimum
    50 N
  • Ambient temperature, maximum
    +80 °C
  • Number of auxiliary contacts
    1
  • Terminal Connector
    Screw connection
  • Width of sensor
    41 mm
  • Required rated short-circuit current to EN 60947-5-1
    400 A
  • Length of sensor
    37 mm
  • Switching element
    1 NO contact, 1 NC contacts
  • Thermal test current
    10 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS315-T11-N300 on Applied Automation is $137.00. Order now.




PS315-T11-N300 Related Documents

Manufacturer warranty

PS315-T11-N300 Schmersal

$137.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$137.00

$137.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international


Secure Payment Processing

Your Safety, Our Priority.


Warranty

Manufacturer warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

About the manufacturer

Schmersal

Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...

Recently viewed products

Relevant products

FAQ

What is the price of PS315-T11-N300?
Purchase the PS315-T11-N300 from Applied Automation at the price of $137.00. Order today.

Out if stock but available for backorder.

PS315-T11-N300 Schmersal - Position switch; PS315; Metal enclosure; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041; Lever angle adjustable in 15° steps; lengt
