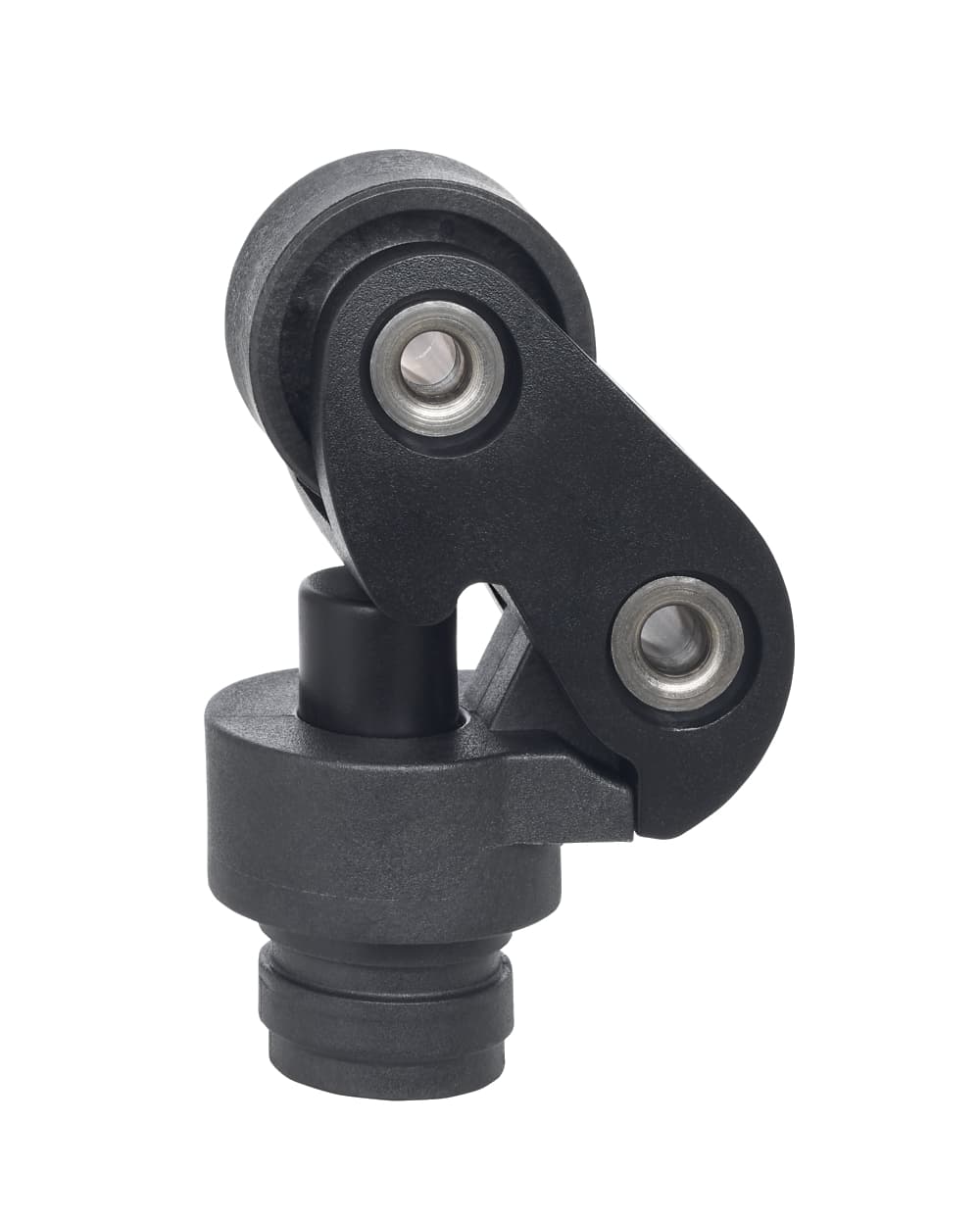

PS315-Z12-K370 Schmersal Safety Switches

Product Details

• Switching principle
  Snap switch element
• Switching frequency
  5,000 /h
• Thermal test current
  5 A
• Switching element
  1 NO contact, 2 NC contacts
• Rated insulation voltage Ui
  300 V
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Utilisation category DC-13
  3 A
• Rated impulse withstand voltage Uimp
  4 kV
• Utilisation category AC-15
  240 VAC
• Degree of protection
  IP66, IP67
• Ambient temperature, maximum
  +80 °C
• Width of sensor
  41 mm
• Height of sensor
  119 mm
• Ambient temperature, minimum
  -30 °C
• Cable section, maximum
  1.5 mm²
• Length of sensor
  37 mm
• Actuating speed, maximum
  1 m/s
• Positive break force, minimum
  50 N
• Safety functions
  Yes
• Actuating speed, minimum
  10 mm/min
Cable section, minimum
0.34 mm²
Number of auxiliary contacts
1
Terminal Connector
Screw connection
Actuating element
Offset roller lever K370
Standards
IEC 60947-5-1
Mechanical life, minimum
10,000,000 Operations
Number of safety contacts
2
Enclosure material
Metal, zinc die-cast
Roller material
Plastic
Enclosure coating material
painted
Housing construction form
Norm construction design
Gross weight
342 g
Material of the contacts, electrical
Silver
