PS315-T11-K360 Schmersal Safety Switches

Product Details

• Switching principle
  Creep circuit element
• Switching element
  1 NO contact, 1 NC contacts
• Rated impulse withstand voltage Uimp
  4 kV
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Rated insulation voltage Ui
  300 V
• Ambient temperature, maximum
  +80 °C
• Degree of protection
  IP66, IP67
• Length of sensor
  37 mm
• Number of safety contacts
  1
• Actuating speed, minimum
  60 mm/min
• Actuating speed, maximum
  0.5 m/s
• Material of the contacts, electrical
  Silver
• Enclosure coating material
  painted
• Standards
  IEC 60947-5-1
• Housing construction form
  Norm construction design
• Switching frequency
  5,000 /h
• Utilisation category DC-13
  24 VDC
• Utilisation category AC-15
  240 VAC
• Thermal test current
  10 A
• Height of sensor
  129 mm
Width of sensor
41 mm
Ambient temperature, minimum
-30 °C
Cable section, maximum
1.5 mm²
Cable section, minimum
0.34 mm²
Terminal Connector
Screw connection

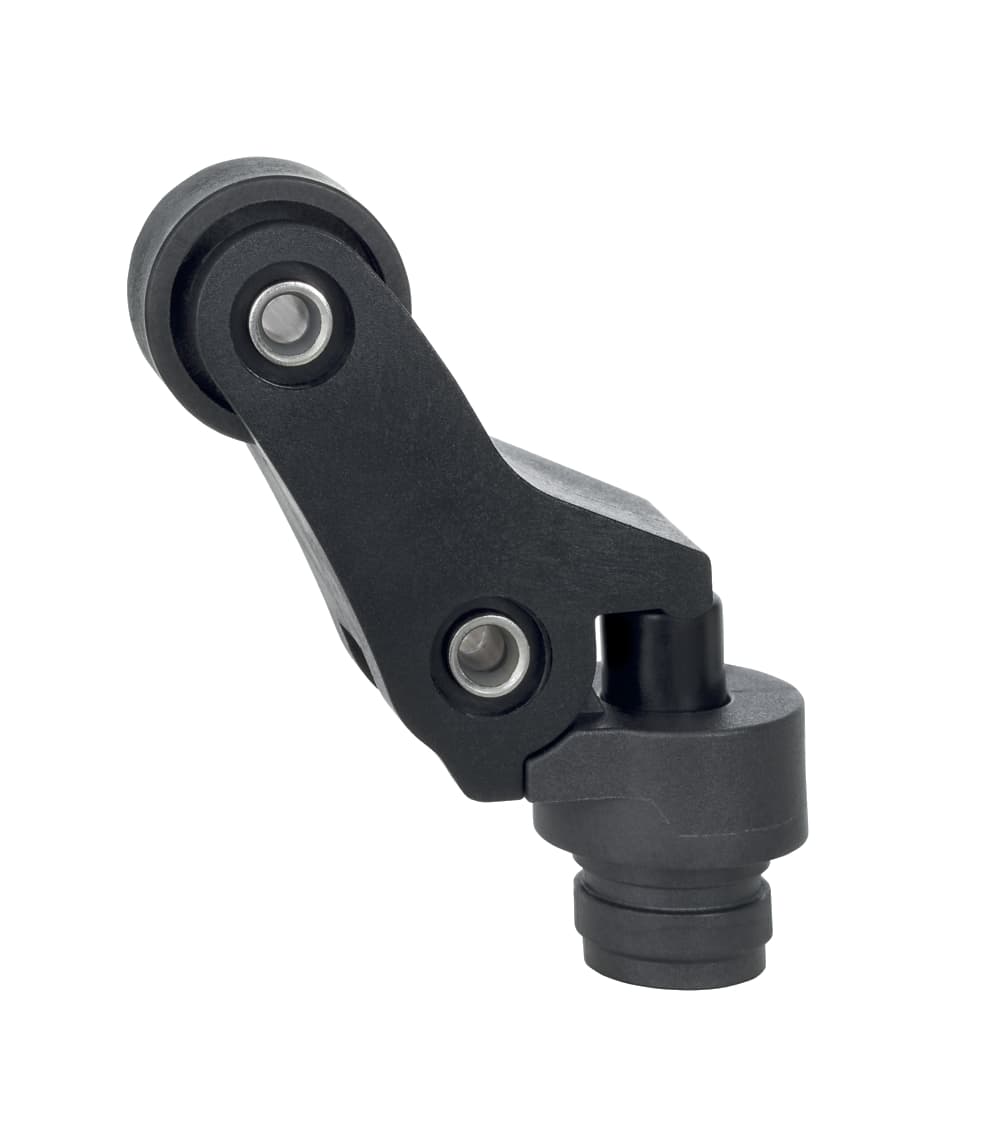

Actuating element
Offset roller lever K360
Positive break force, minimum
50 N
Mechanical life, minimum
10,000,000 Operations
Safety functions
Yes
Number of auxiliary contacts
1
Enclosure material
Metal, zinc die-cast
Roller material
Plastic
Gross weight
343 g
