PS315-T11-J300 Schmersal Safety Switches
Part#:PS315-T11-J300
Alt. Part#:103015127
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

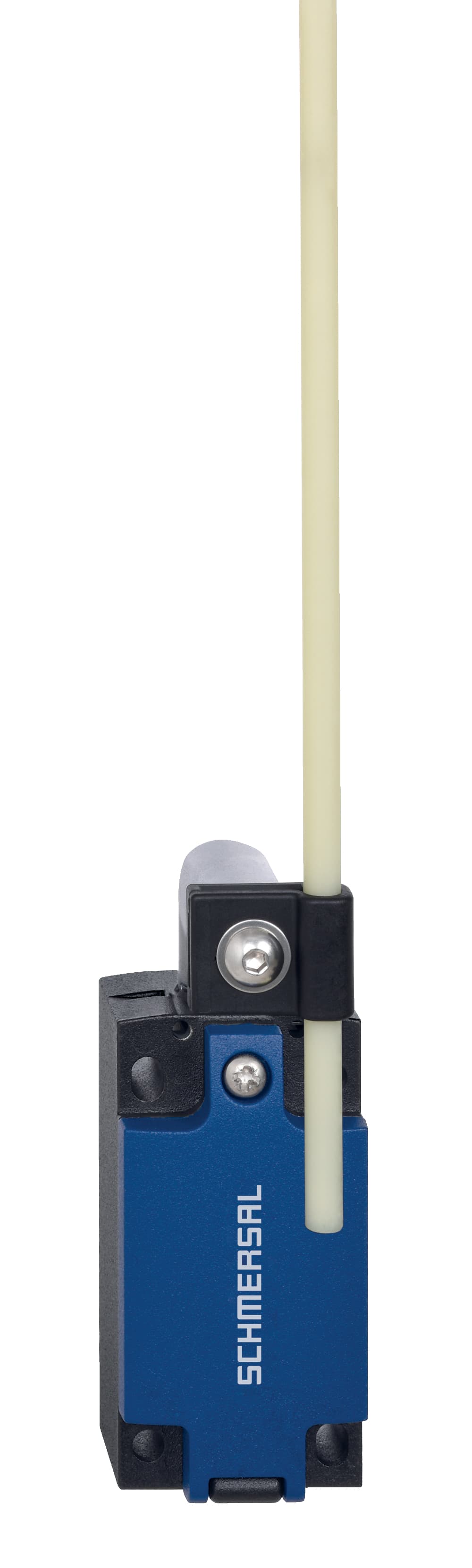

PS315-T11-J300 Schmersal - Position switch; PS315; Metal enclosure; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041; only for positioning tasks; Lever angle ad
Product Details
- Number of auxiliary contacts 1
- Positive break force, minimum 50 N
- Ambient temperature, minimum -30 °C
- Required rated short-circuit current to EN 60947-5-1 400 A
- Standards IEC 60947-5-1
- Actuating speed, maximum 0.5 m/s
- Width of sensor 41 mm
- Number of safety contacts 1
- Gross weight 382 g
- Terminal Connector Screw connection
- Degree of protection IP66, IP67
- Utilisation category AC-15 3 A
- Roller material Plastic
- Actuating element Rod lever J300
- Length of sensor 37 mm
- Rated impulse withstand voltage Uimp 4 kV
- Switching principle Creep circuit element
- Cable section, maximum 1.5 mm²
- Thermal test current 10 A
- Switching frequency 5,000 /h
- Housing construction form Norm construction design
- Cable section, minimum 0.34 mm²
- Rated insulation voltage Ui 300 V
- Switching element 1 NO contact, 1 NC contacts
- Enclosure material Metal, zinc die-cast
- Mechanical life, minimum 10,000,000 Operations
- Ambient temperature, maximum +80 °C
- Material of the contacts, electrical Silver
- Actuating speed, minimum 60 mm/min
- Enclosure coating material painted
- Utilisation category DC-13 3 A
- Height of sensor 192 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS315-T11-J300 on Applied Automation is $138.00. Order now.
