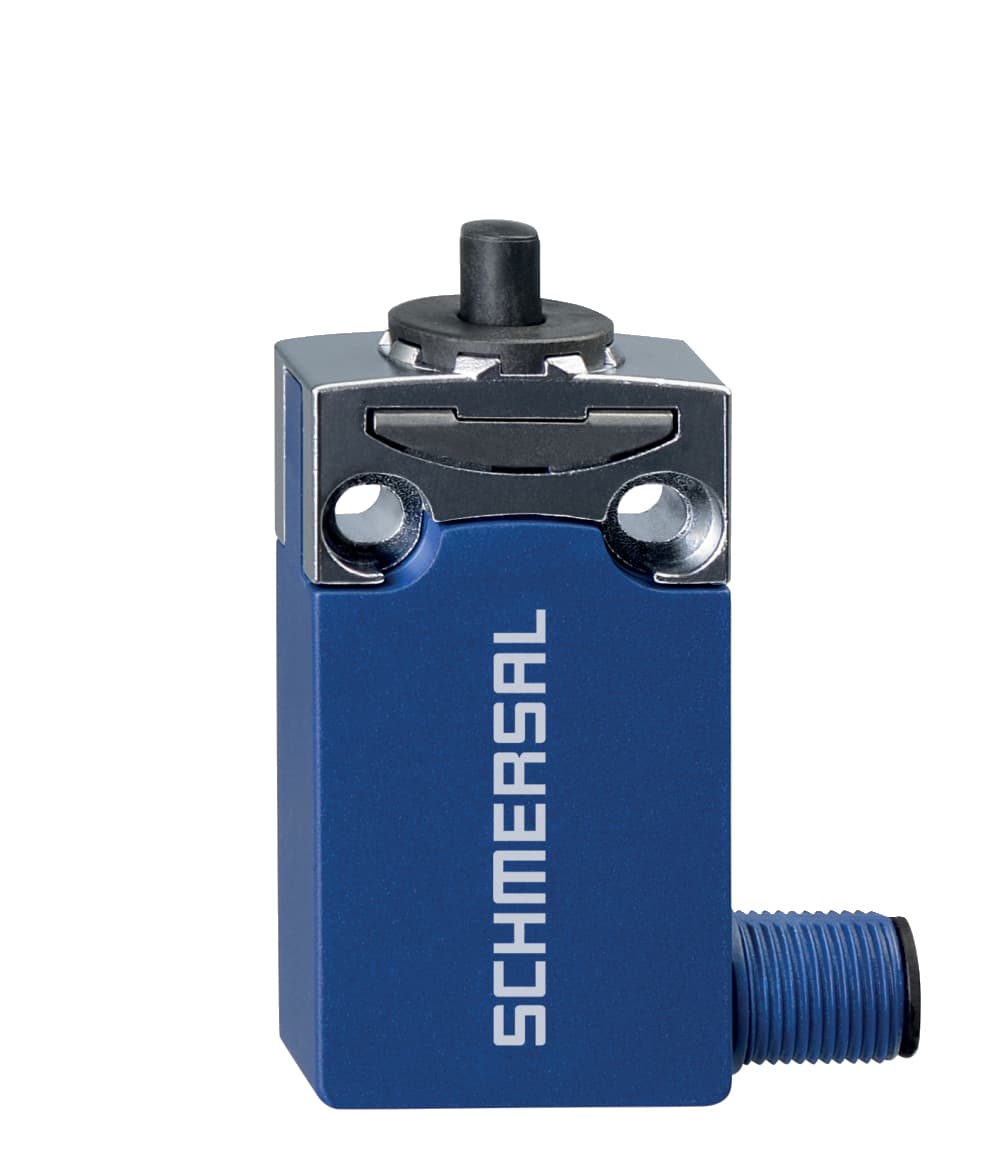

PS116-Z12-STR-S200 Schmersal Safety Switches

Product Details

• Standards
  IEC 60947-5-1
• Actuating speed, minimum
  10 mm/min
• Width of sensor
  31 mm
• Thermal test current
  2 A
• Switchover time, maximum
  5.5 ms
• Actuator type to DIN EN 50047
  B
• Terminal (mechanical)
  right
• Height of sensor
  64 mm
• Utilisation category AC-15
  240 VAC
• Number of auxiliary contacts
  1
• Number of safety contacts
  2
• Actuating speed, maximum
  0.5 m/s
• Rated impulse withstand voltage Uimp
  0.8 kV
• Switching principle
  Snap switch element
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
• Mechanical life, minimum
  10,000,000 Operations
• Length of sensor
  16.6 mm
• Rated insulation voltage Ui
  30 V
• Switching frequency
  5,000 /h
• Gross weight
  250 g
Terminal Connector
Connector M12, 6-pole
Ambient temperature, maximum
+80 °C
Switching element
NO contact, NC contact
Material of the contacts, electrical
Silver
Actuating element
plunger S200
Degree of protection
IP66, IP67
Required rated short-circuit current to EN 60947-5-1
1,000 A
Housing construction form
Norm construction design
Actuating force, minimum
10 N
Ambient temperature, minimum
-30 °C
Bounce duration, maximum
3 ms
Utilisation category DC-13
24 VDC
Safety functions
Yes
Positive break force, minimum
40 N
Wire cross-section
0.5 mm2
