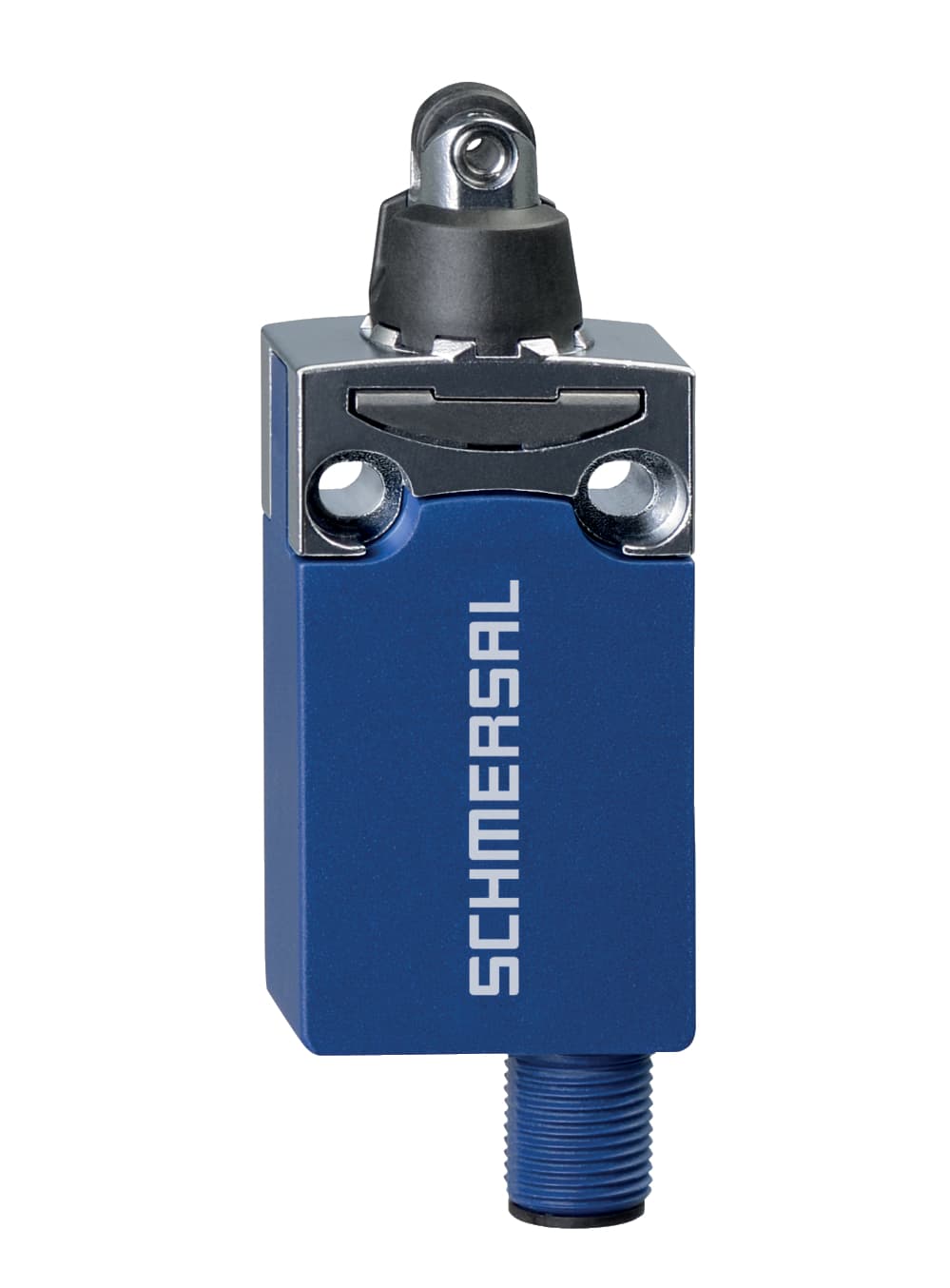

PS116-Z02-ST-R200 Schmersal Safety Switches

Product Details

• Switchover time, maximum
  5.5 ms
• Switching frequency
  5,000 /h
• Bounce duration, maximum
  3 ms
• Switching principle
  Snap switch element
• Utilisation category AC-15
  240 VAC
• Switching element
  NO contact, NC contact
• Utilisation category DC-13
  24 VDC
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Thermal test current
  2 A
• Ambient temperature, minimum
  -30 °C
• Ambient temperature, maximum
  +80 °C
• Rated impulse withstand voltage Uimp
  0.8 kV
• Rated insulation voltage Ui
  30 V
• Diameter of Castor
  9.5 mm
• Degree of protection
  IP66, IP67
• Width of sensor
  31 mm
• Terminal Connector
  Connector M12, 6-pole
• Actuating speed, minimum
  20 mm/min
• Length of sensor
  16.6 mm
• Actuating speed, maximum
  0.5 m/s
Height of sensor
74.1 mm
Actuating element
Roller plunger R200
Actuating force, minimum
10 N
Positive break force, minimum
40 N
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Mechanical life, minimum
10,000,000 Operations
Material of the contacts, electrical
Silver
Actuator type to DIN EN 50047
c
Gross weight
76 g
Housing construction form
Norm construction design
Number of safety contacts
2
Safety functions
Yes
Standards
IEC 60947-5-1
Terminal (mechanical)
bottom
