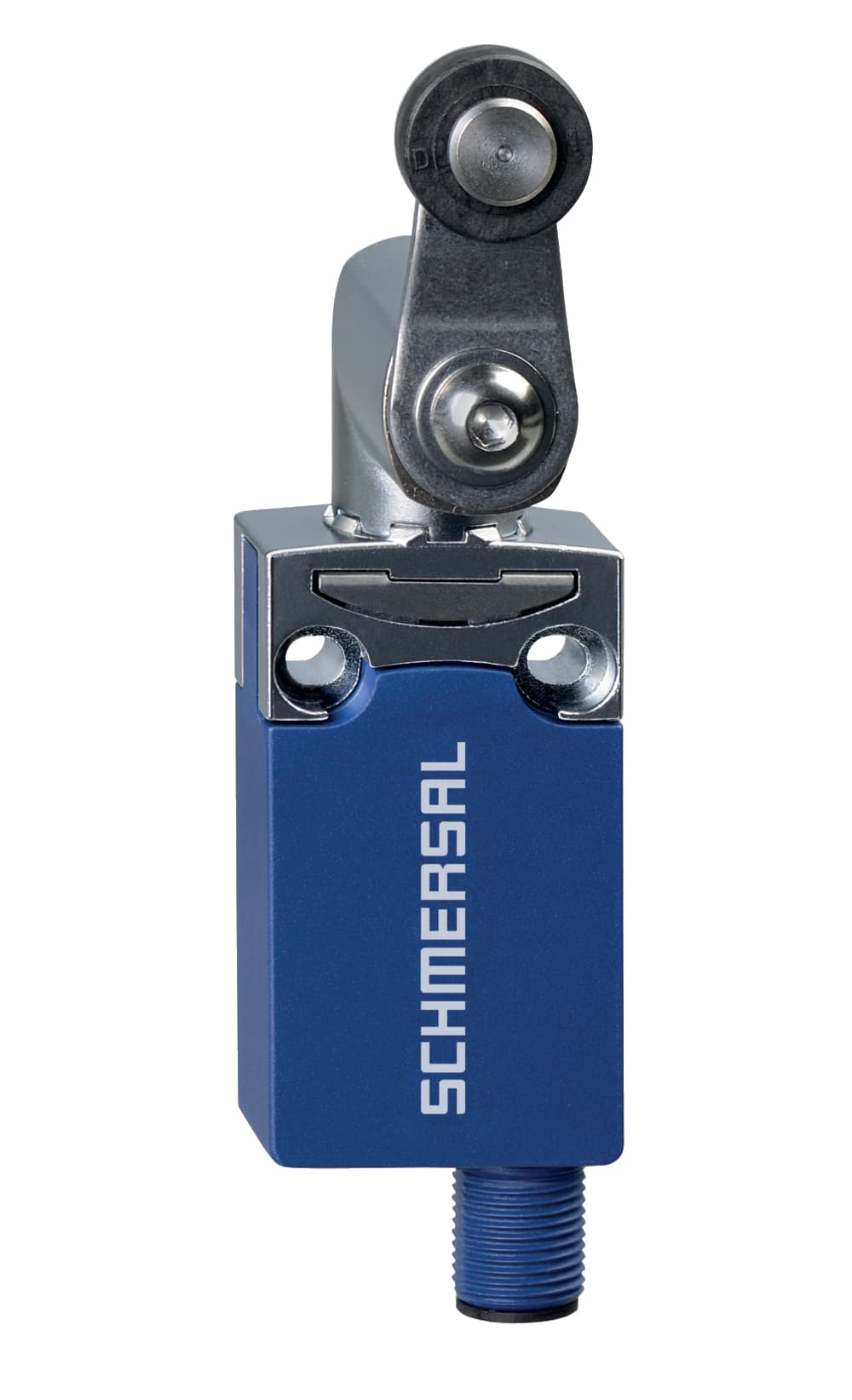

PS116-T12-ST-H200 Schmersal Safety Switches
Part#:PS116-T12-ST-H200
Alt. Part#:103006668
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS116-T12-ST-H200 Schmersal - Position switch; PS116; connector plug M12, bottom; Slow action 1 Normally open contact (NO) / 2 Opener (NC); Thermoplastic enclosure; Symmetric enclosure; Lever angle adjustable in 15° steps; Protection class IP66, IP67; Actuator heads can be repositione
Product Details
- Number of safety contacts 2
- Width of sensor 31 mm
- Rated insulation voltage Ui 30 V
- Bounce duration, maximum 3 ms
- Number of auxiliary contacts 1
- Actuating element Roller lever H200
- Length of sensor 16.6 mm
- Ambient temperature, maximum +80 °C
- Utilisation category DC-13 1.5 A
- Safety functions Yes
- Standards IEC 60947-5-1
- Material of the contacts, electrical Silver
- Actuating torque, minimum 0.2 Nm
- Diameter of Castor 16 mm
- Switching element NO contact, NC contact
- Gross weight 121 g
- Height of sensor 101 mm
- Degree of protection IP66, IP67
- Thermal test current 2 A
- Switchover time, maximum 5.5 ms
- Actuator type to DIN EN 50047 A
- Actuating speed, minimum 492 mm/min
- Actuating speed, maximum 1 m/s
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Terminal Connector Connector M12, 6-pole
- Ambient temperature, minimum -30 °C
- Switching principle Creep circuit element
- Housing construction form Norm construction design
- Mechanical life, minimum 10,000,000 Operations
- Length of the lever 24 mm
- Utilisation category AC-15 1.5 A
- Switching frequency 5,000 /h
- Terminal (mechanical) bottom
- Positive break torque 0.6 Nm
- Rated impulse withstand voltage Uimp 0.8 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS116-T12-ST-H200 on Applied Automation is $114.00. Order now.
