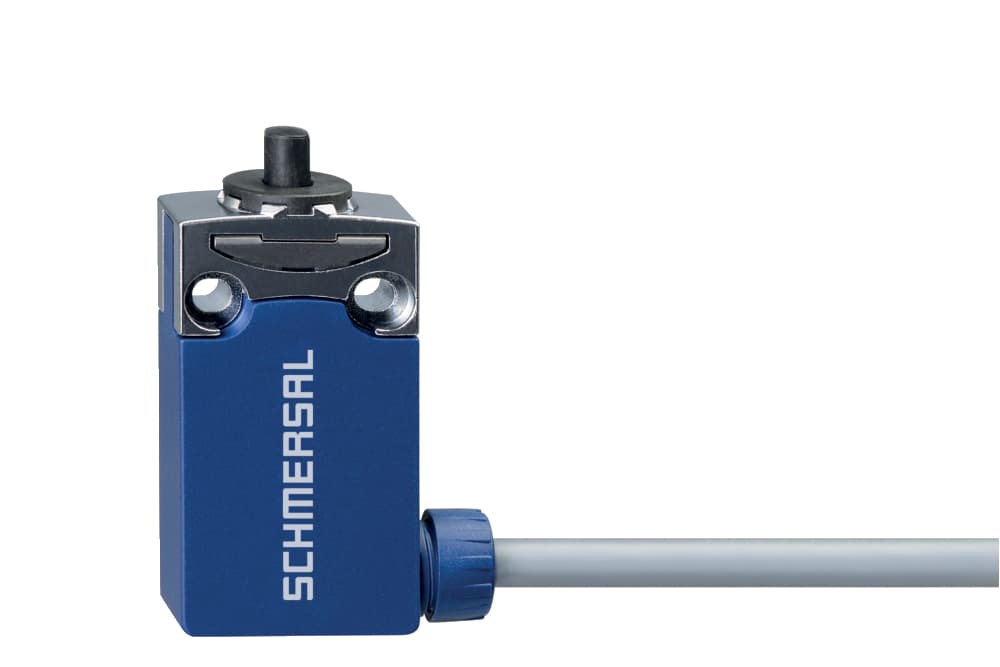

PS116-T12-LR200-S200 Schmersal Safety Switches

Product Details

• Standards
  IEC 60947-5-1
• Number of safety contacts
  2
• Length of sensor
  16.6 mm
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Switchover time, maximum
  5.5 ms
• Actuating force, minimum
  10 N
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
• Terminal Connector
  Cable, 6-pole
• Rated impulse withstand voltage Uimp
  4 kV
• Safety functions
  Yes
• Actuating speed, maximum
  1 m/s
• Height of sensor
  64 mm
• Utilisation category DC-13
  1.5 A
• Actuating element
  plunger S200
• Gross weight
  200 g
• Cable type
  LiYY
• Ambient temperature, maximum
  +80 °C
• Switching principle
  Creep circuit element
• Housing construction form
  Norm construction design
• Positive break force, minimum
  40 N
Wire cross-section
0.5 mm2
Rated insulation voltage Ui
300 V
Switching frequency
5,000 /h
Terminal (mechanical)
right
Actuating speed, minimum
60 mm/min
Degree of protection
IP66, IP67
Thermal test current
5 A
Bounce duration, maximum
3 ms
Mechanical life, minimum
10,000,000 Operations
Material of the contacts, electrical
Silver
Length of cable
2 m
Ambient temperature, minimum
-30 °C
Actuator type to DIN EN 50047
B
Number of auxiliary contacts
1
Width of sensor
31 mm
Utilisation category AC-15
3 A
Switching element
NO contact, NC contact
