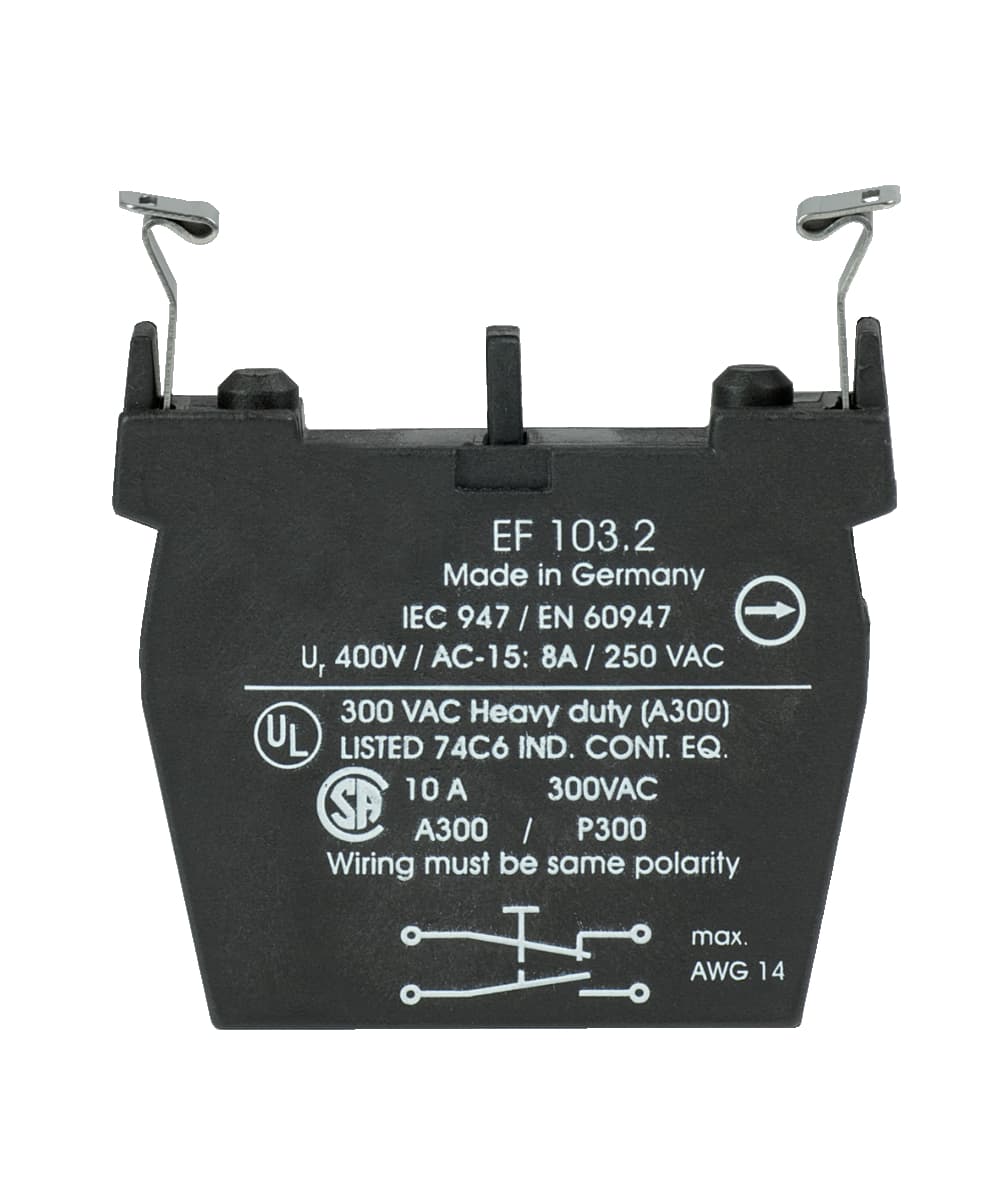

EF103.1 Schmersal Safety Accessories

Product Details

• Contact labelling
  11-12, 23-24
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Depth
  60 mm
• Suitable for low-voltages
  ≥ 5 V / ≥ 3.2 mA
• Number of openers
  1

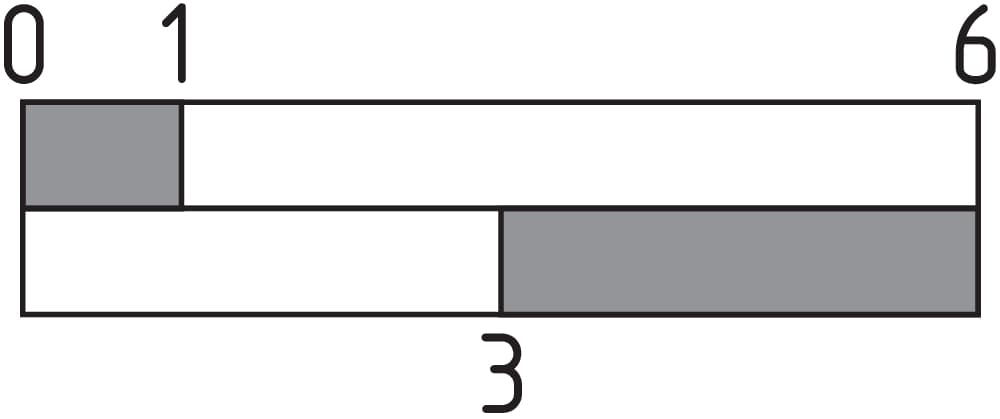

• positive break travel
  2 mm
• Cable section, minimum
  0.5 mm², rigid, 0.5 mm², flexible
• Rated insulation voltage Ui
  400 V
• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Gross weight
  20 g
• Terminal Connector
  Screw connection
• Ambient temperature, maximum
  +80 °C
• Utilisation category AC-15
  230 VAC
• Installation instructions
  pluggable
• Note Bounce duration
  Bounce duration at an Actuating speed of 100mm/s
• Width
  10 mm
• Switching element
  NC contact, NO contact
• Switching frequency
  1,200 /h
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Cable section, maximum
  2.5 mm², rigid, 1.5 mm², flexible
Thermal test current
10 A
Switching principle
Slow action
Number of shutters
1
Contact opening
3 mm NO1 mm NC
Degree of protection of the switch rooms
IP40
Restistance to shock
110 g / 4 ms
Utilisation category DC-13
5 A
Mechanical life, minimum
10,000,000 Operations
Mounting flange position
1
Degree of protection of clips or terminals
IP20
Ambient temperature, minimum
-25 °C
Material of the contacts, electrical
Silver
Length
46 mm
Resistant to vibration
Resistance to vibration: 20 g / 10…200 Hz
Bounce duration, maximum
5 ms
