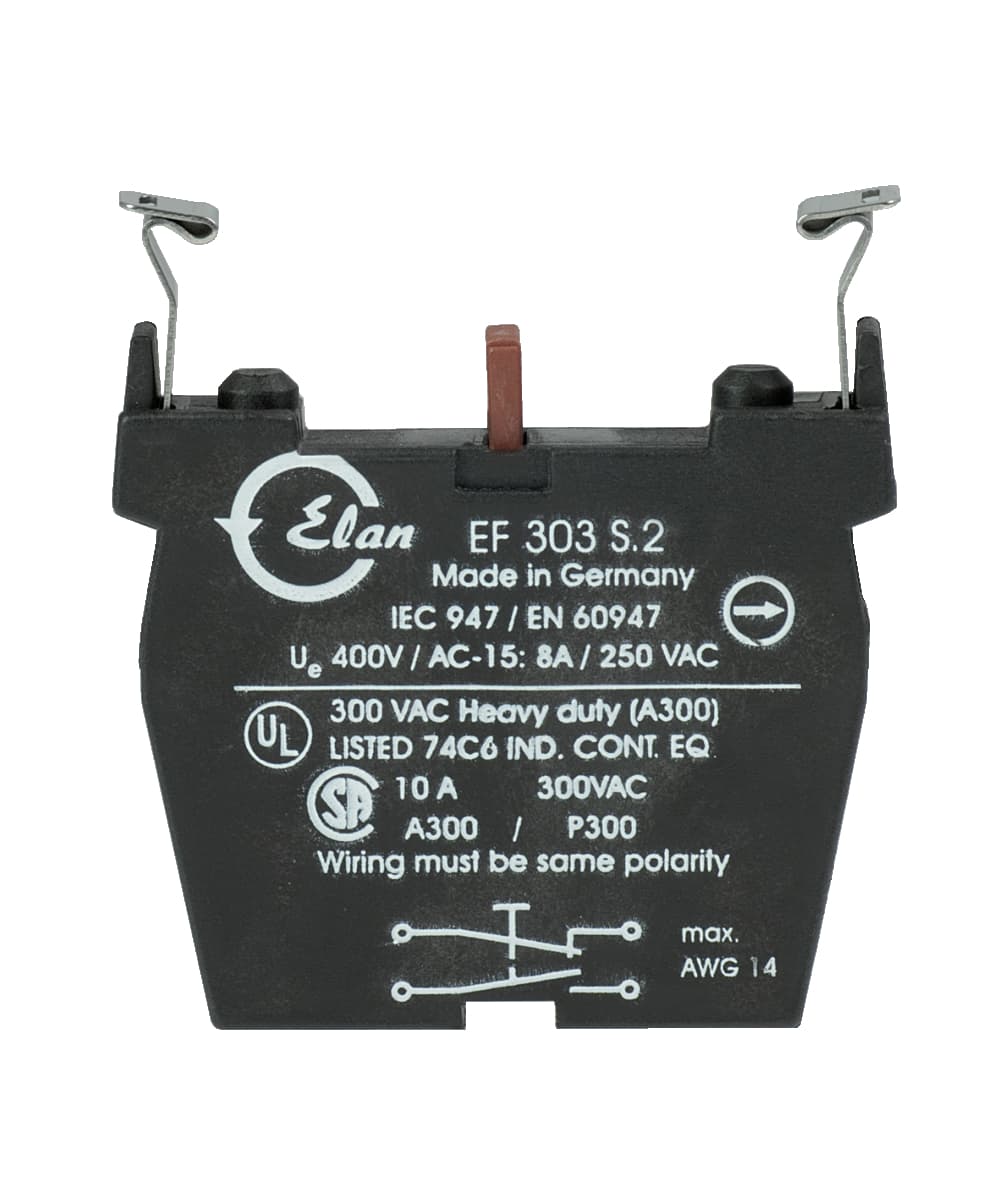

EF102.1 Schmersal Electronic Components

Product Details

• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Standards
  EN 60947-5-1, IEC/EN 60947-1
• positive break travel
  2 mm
• Width
  10 mm
• Mounting flange position
  1
• Ambient temperature, minimum
  -25 °C
• Rated insulation voltage Ui
  400 V
• Utilisation category AC-15
  230 VAC
• Mechanical life, minimum
  10,000,000 Operations
• Length
  46 mm
• Resistant to vibration
  Resistance to vibration: 20 g / 10…200 Hz
• Material of the contacts, electrical
  Silver
• Cable section, minimum
  0.5 mm², rigid, 0.5 mm², flexible
• Restistance to shock
  110 g / 4 ms
• Thermal test current
  10 A
• Number of openers
  1
• Terminal Connector
  Screw connection
• Degree of protection of the switch rooms
  IP40
• Number of shutters
  1
• Contact opening
  2 mm NO1 mm NC
Degree of protection of clips or terminals
IP20
Bounce duration, maximum
5 ms
Utilisation category DC-13
24 VDC
Note Bounce duration
Bounce duration at an Actuating speed of 100mm/s
Gross weight
20 g
Cable section, maximum
2.5 mm², rigid, 1.5 mm², flexible
Ambient temperature, maximum
+80 °C
Contact labelling
11-12, 23-24
Installation instructions
pluggable
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Switching frequency
1,200 /h
Suitable for low-voltages
≥ 5 V / ≥ 3.2 mA
Depth
60 mm
Switching element
NC contact, NO contact
Switching principle
Slow action
