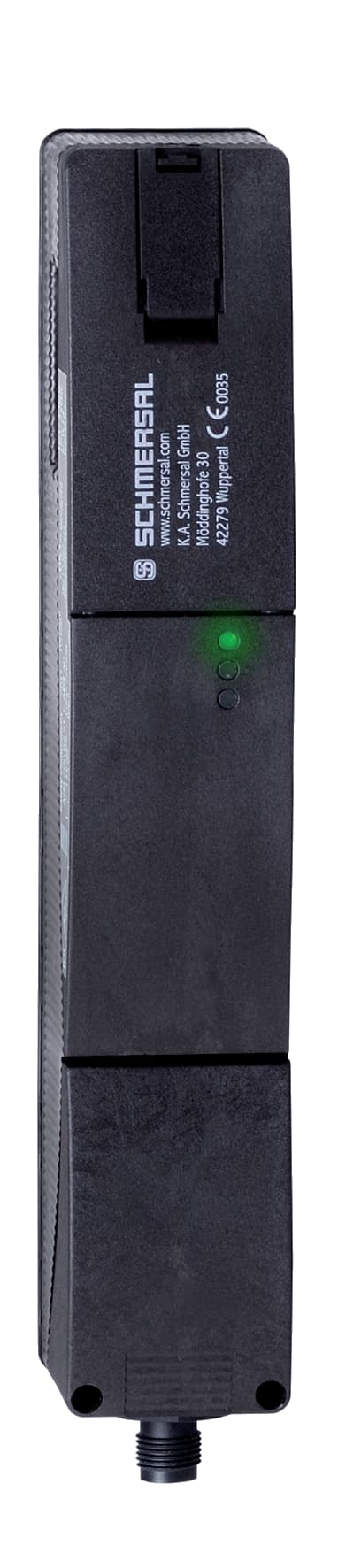

AZM201BZ-ST-T-AS-P Schmersal Safety Switches

Product Details

• Enclosure material
  Glass-fibre, reinforced thermoplastic
• Integral System Diagnostics, status
  Yes
• Reaction time, maximum
  100 ms
• Clamping force in accordance with ISO14119 Fzh
  2,000 N
• Latching force
  30 N
• Note (Relative humidity)
  non-condensing, non-icing
• Ambient temperature, maximum
  +60 °C
• Relative humidity, minimum
  10 %
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Switching frequency, maximum
  1 Hz
• AS-i Current consumption, maximum
  100 mA
• AS-i, IO-Code
  0x7
• AS-i, ID-Code1
  0xF
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 3
  No Function
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i, ID-Code
  0xB
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• general information
  Universal coding
Number of actuating directions
2
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Rated insulation voltage Ui
32 VDC
AS-i Specification
Safety-Slave
AS-i Outputs, DO 0
Solenoid control
AS-i Parameter bits, P3
Internal device error (FID)
Duration of risk, maximum
200 ms
Latching
Yes
Width of sensor
40 mm
Actuating speed, maximum
0.2 m/s
Restistance to shock
30 g / 11 ms
Overvoltage category
III
AS-i Operating voltage, minimum
26.5 VDC
AS-i Outputs, DO 1
No Function
AS-i Input module address
0
Coding level according to ISO 14119
Low
Safety functions
Yes
Height of sensor
220 mm
Storage and transport temperature, minimum
-25 °C
Degree of pollution to IEC/EN 60664-1
3
AS-i Version
V 3.0
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
Note (AS-i Parameter bits)
FID: periphery error
Gross weight
541 g
Actuator and interlock combined monitored
Yes
Clamping force, maximum Fmax
2,600 N
Tightening torque for the fixing screws, maximum
8 Nm
Protection rating
III
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Profile
S-7.B.F.E
AS-i Parameter bits, P1
Solenoid interlock locked
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
Active principle
RFID
Time to readiness, maximum
4,000 ms
Mechanical life, minimum
1,000,000 Operations
Ambient temperature, minimum
-25 °C
Rated impulse withstand voltage Uimp
0.8 kV
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Power to unlock
Yes
Manual release
Yes
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Length of sensor
50 mm
Relative humidity, maximum
95 %
Storage and transport temperature, maximum
+85 °C
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i, ID-Code2
0xE
AS-i Parameter bits, P2
Magnet voltage in tolerance range
Operating current
500 mA
