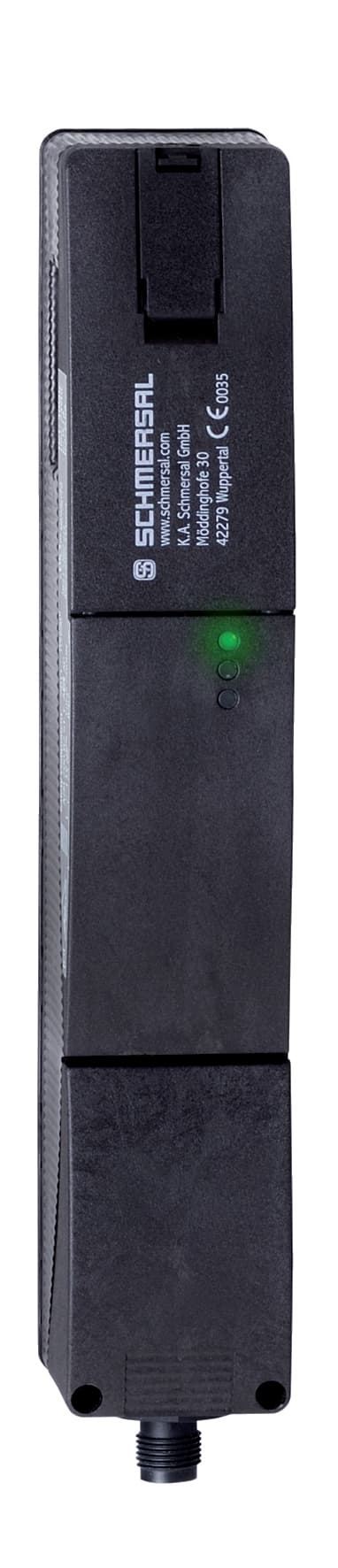

AZM201B-I2-ST-T-AS-A-P Schmersal Safety Switches

Product Details

• Time to readiness, maximum
  4,000 ms
• Number of actuating directions
  2
• Clamping force in accordance with ISO14119 Fzh
  2,000 N
• Storage and transport temperature, minimum
  -25 °C
• Note (Relative humidity)
  non-condensing, non-icing
• Switching frequency, maximum
  1 Hz
• AS-i, IO-Code
  0x7
• AS-i Outputs, DO 2
  No Function
• AS-i Parameter bits, P3
  Internal device error (FID)
• general information
  Individual coding, multiple teaching
• Gross weight
  538.5 g
• Actuator monitored
  Yes
• Length of sensor
  50 mm
• Ambient temperature, minimum
  -25 °C
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• AS-i, ID-Code
  0xB
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input module address
  0
• Reaction time, maximum
  100 ms
• Duration of risk, maximum
  200 ms
Tightening torque for the fixing screws, maximum
8 Nm
Storage and transport temperature, maximum
+85 °C
Rated insulation voltage Ui
32 VDC
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
Note (AS-i Parameter bits)
FID: periphery error
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Safety functions
Yes
Actuating speed, maximum
0.2 m/s
Relative humidity, minimum
10 %
Overvoltage category
III
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i, ID-Code1
0xF
AS-i Parameter bits, P0
Safety guard and actuator detected
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
Coding level according to ISO 14119
High
Integral System Diagnostics, status
Yes
Clamping force, maximum Fmax
2,600 N
Height of sensor
220 mm
Restistance to shock
30 g / 11 ms
AS-i Operating voltage, minimum
26.5 VDC
AS-i Version
V 3.0
AS-i Outputs, DO 1
No Function
AS-i Parameter bits, P2
Magnet voltage in tolerance range
Active principle
RFID
Power to lock
Yes
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Specification
Safety-Slave
AS-i, ID-Code2
0xE
AS-i Parameter bits, P1
Solenoid interlock locked
Enclosure material
Glass-fibre, reinforced thermoplastic
Manual release
Yes
Mechanical life, minimum
1,000,000 Operations
Latching force
30 N
Ambient temperature, maximum
+60 °C
Protection rating
III
AS-i Current consumption, maximum
100 mA
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
Operating current
500 mA
Latching
Yes
Width of sensor
40 mm
Relative humidity, maximum
95 %
Degree of pollution to IEC/EN 60664-1
3
AS-i Profile
S-7.B.F.E
AS-i Outputs, DO 3
No Function
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
