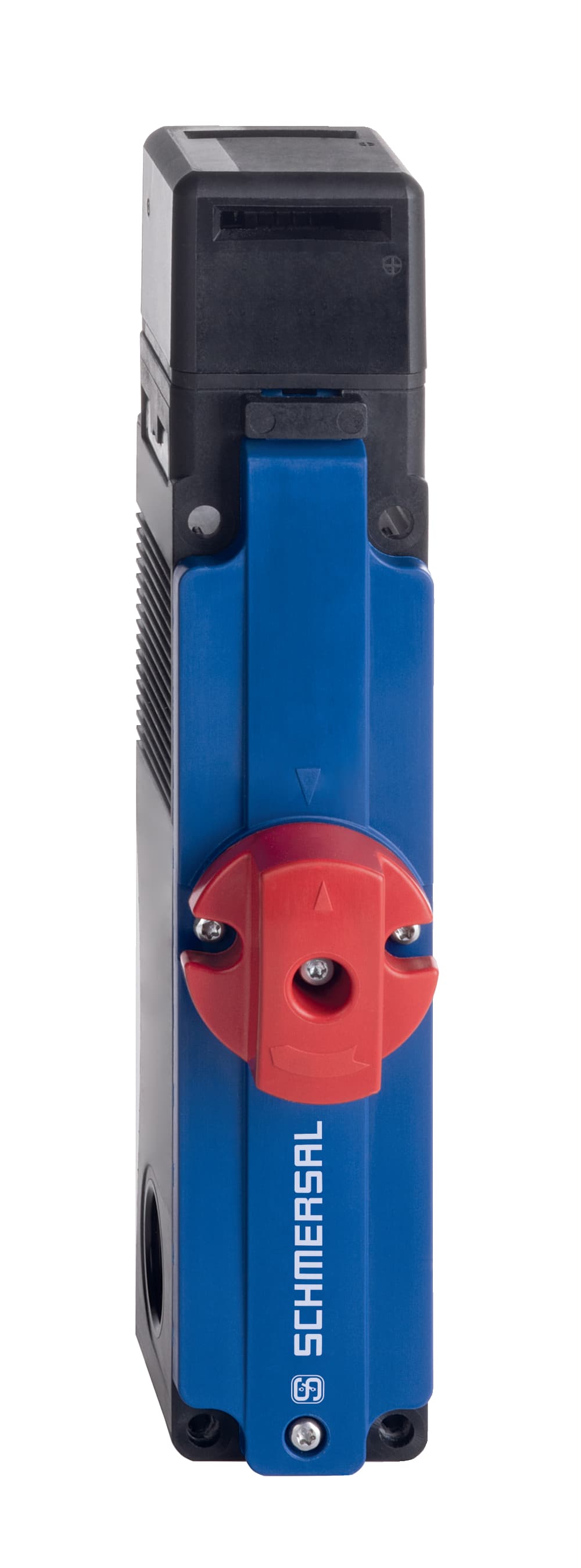

AZM150SK-02/11RT-024 Schmersal Safety Switches

Product Details

• Number of actuating directions
  2
• Number of safety contacts
  3
• Terminal Connector
  Screw terminals
• Ambient temperature, maximum
  +55 °C
• Rated control voltage
  24 VDC
• Switching frequency
  1,000 /h
• Power to unlock
  Yes
• Clamping force, maximum Fmax
  1,950 N
• Cable section, minimum
  1 x 0.25 mm²
• Rated impulse withstand voltage Uimp
  4 kV
• Emergency exit
  Yes
• Positive break force, minimum
  40 N
• Cable section, maximum
  1 x 2.5 mm²
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Enclosure material
  Thermoplastic, Polyamide PA 6 GF
• Number of auxiliary contacts
  1
• Rated insulation voltage Ui
  300 V
• Width of sensor
  40 mm
• Electrical power consumption, maximum
  8.5 W
Coding level according to ISO 14119
Low
Latching force, approx.
50 N
Cable entry
3 x M20 x 1,5
Height of sensor
204 mm
Thermal test current
5 A
Switching element
NC contact, NO contact
Standards
EN 60947-5-1, EN ISO 14119
Material of the contacts, electrical
Silver
Mechanical life, minimum
1,000,000 Operations
Mounting
Screws
Ambient temperature, minimum
-25 °C
Switching principle
Creep circuit element
Utilisation category DC-13
2.5 A
Gross weight
600.6 g
Clamping force in accordance with ISO14119 Fzh
1,500 N
Actuating speed, maximum
0.2 m/s
Storage and transport temperature, minimum
-40 °C
Utilisation category AC-15
3 A
Length of sensor
64 mm
positive break travel
10 mm
Active principle
electromechanical
Storage and transport temperature, maximum
+85 °C
