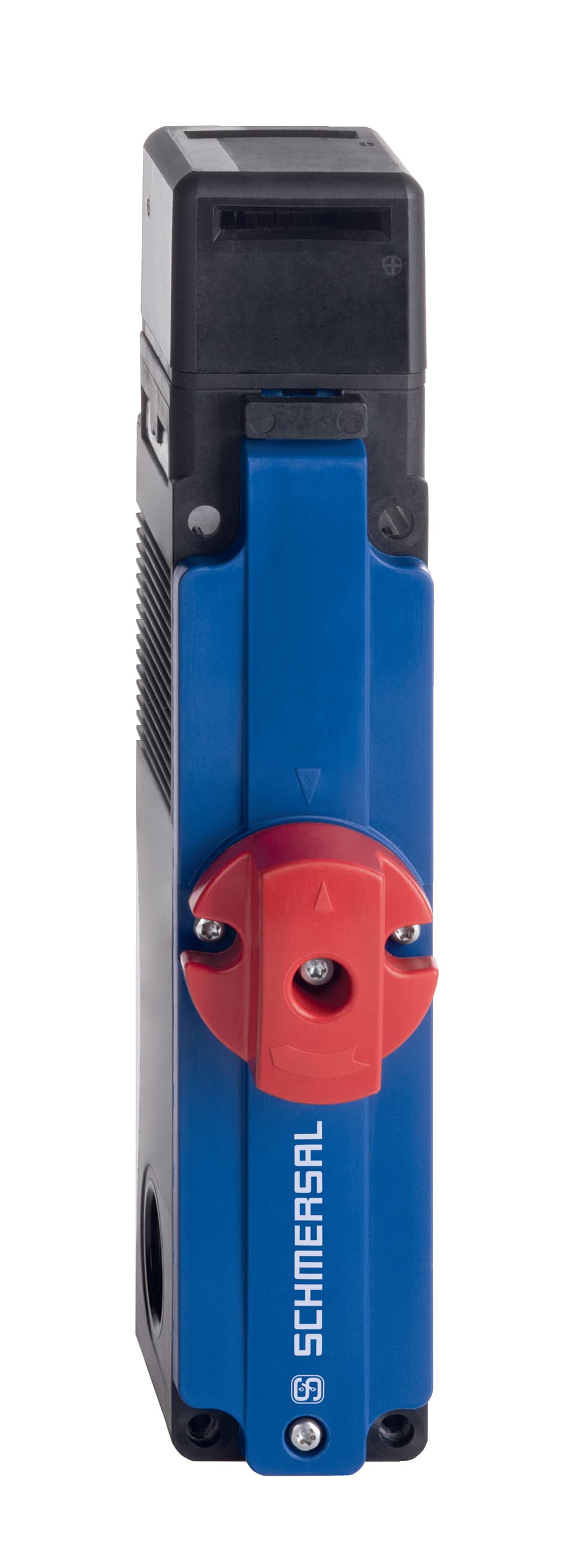

AZM150SK-02/02RT-230 Schmersal Safety Switches

Product Details

• Emergency exit
  Yes
• Gross weight
  587.8 g
• Mechanical life, minimum
  1,000,000 Operations
• Coding level according to ISO 14119
  Low
• Actuating speed, maximum
  0.2 m/s
• Positive break force, minimum
  40 N
• Length of sensor
  64 mm
• Ambient temperature, maximum
  +55 °C
• Width of sensor
  40 mm
• Rated control voltage
  230 VAC
• Switching principle
  Creep circuit element
• Switching element
  Opener (NC)
• Active principle
  electromechanical
• Cable entry
  3 x M20 x 1,5
• Clamping force, maximum Fmax
  1,950 N
• Storage and transport temperature, maximum
  +85 °C
• Utilisation category DC-13
  24 VDC
• Power to unlock
  Yes
• Latching force, approx.
  50 N
• Terminal Connector
  Screw terminals
Storage and transport temperature, minimum
-40 °C
Electrical power consumption, maximum
8.5 W
Utilisation category AC-15
3 A
Standards
EN 60947-5-1, EN ISO 14119
Enclosure material
Thermoplastic, Polyamide PA 6 GF
Cable section, maximum
1 x 2.5 mm²
Rated insulation voltage Ui
300 V
Material of the contacts, electrical
Silver
positive break travel
10 mm
Ambient temperature, minimum
-25 °C
Thermal test current
5 A
Switching frequency
1,000 /h
Number of safety contacts
4
Mounting
Screws
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Required rated short-circuit current to EN 60947-5-1
400 A
Number of actuating directions
2
Clamping force in accordance with ISO14119 Fzh
1,500 N
Cable section, minimum
1 x 0.25 mm²
Height of sensor
204 mm
Rated impulse withstand voltage Uimp
4 kV
