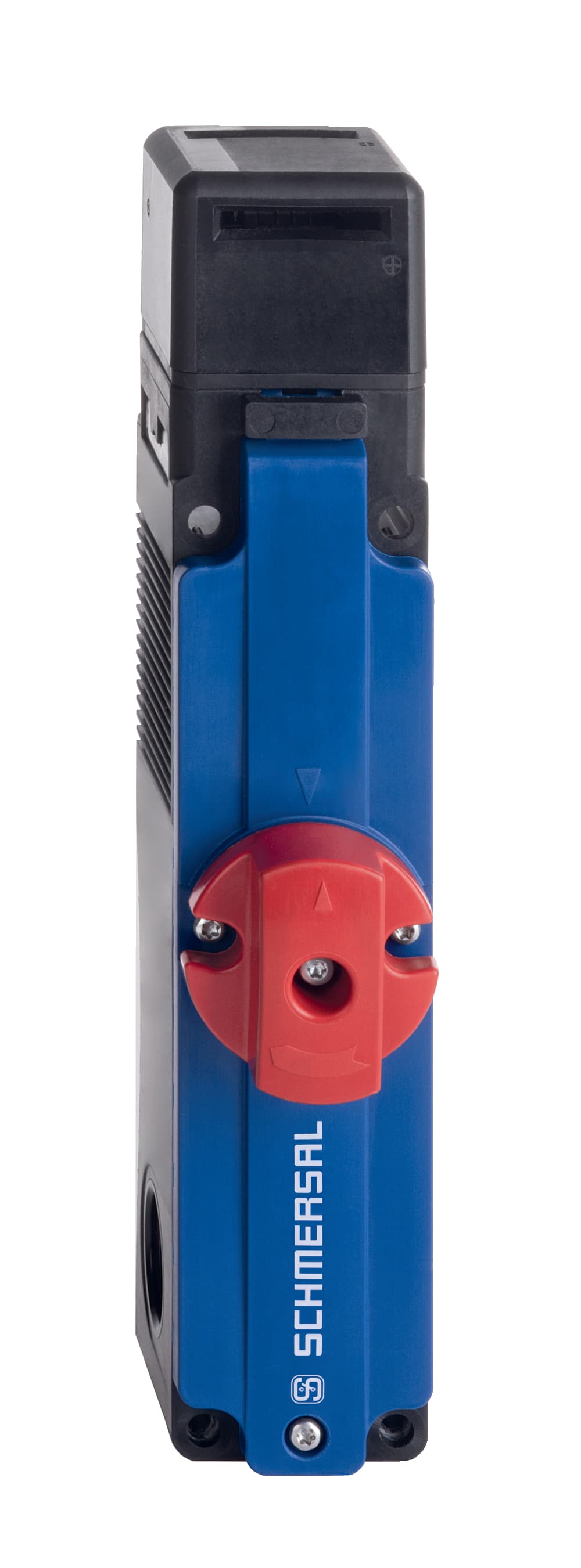

AZM150SK-02/02RT-024 Schmersal Safety Switches

Product Details

• Emergency exit
  Yes
• Coding level according to ISO 14119
  Low
• Gross weight
  600.1 g
• Latching force, approx.
  50 N
• Mounting
  Screws
• Terminal Connector
  Screw terminals
• Width of sensor
  40 mm
• Height of sensor
  204 mm
• Thermal test current
  5 A
• Utilisation category AC-15
  3 A
• Electrical power consumption, maximum
  8.5 W
• Switching frequency
  1,000 /h
• Mechanical life, minimum
  1,000,000 Operations
• Material of the contacts, electrical
  Silver
• Active principle
  electromechanical
• Positive break force, minimum
  40 N
• Length of sensor
  64 mm
• Number of safety contacts
  4
• positive break travel
  10 mm
• Storage and transport temperature, maximum
  +85 °C
Enclosure material
Thermoplastic, Polyamide PA 6 GF
Switching element
Opener (NC)
Number of actuating directions
2
Rated impulse withstand voltage Uimp
4 kV
Utilisation category DC-13
2.5 A
Standards
EN 60947-5-1, EN ISO 14119
Power to unlock
Yes
Rated insulation voltage Ui
300 V
Clamping force in accordance with ISO14119 Fzh
1,500 N
Cable entry
3 x M20 x 1,5
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Rated control voltage
24 VDC
Switching principle
Creep circuit element
Actuating speed, maximum
0.2 m/s
Ambient temperature, minimum
-25 °C
Clamping force, maximum Fmax
1,950 N
Cable section, minimum
1 x 0.25 mm²
Cable section, maximum
1 x 2.5 mm²
Ambient temperature, maximum
+55 °C
Storage and transport temperature, minimum
-40 °C
Required rated short-circuit current to EN 60947-5-1
400 A
