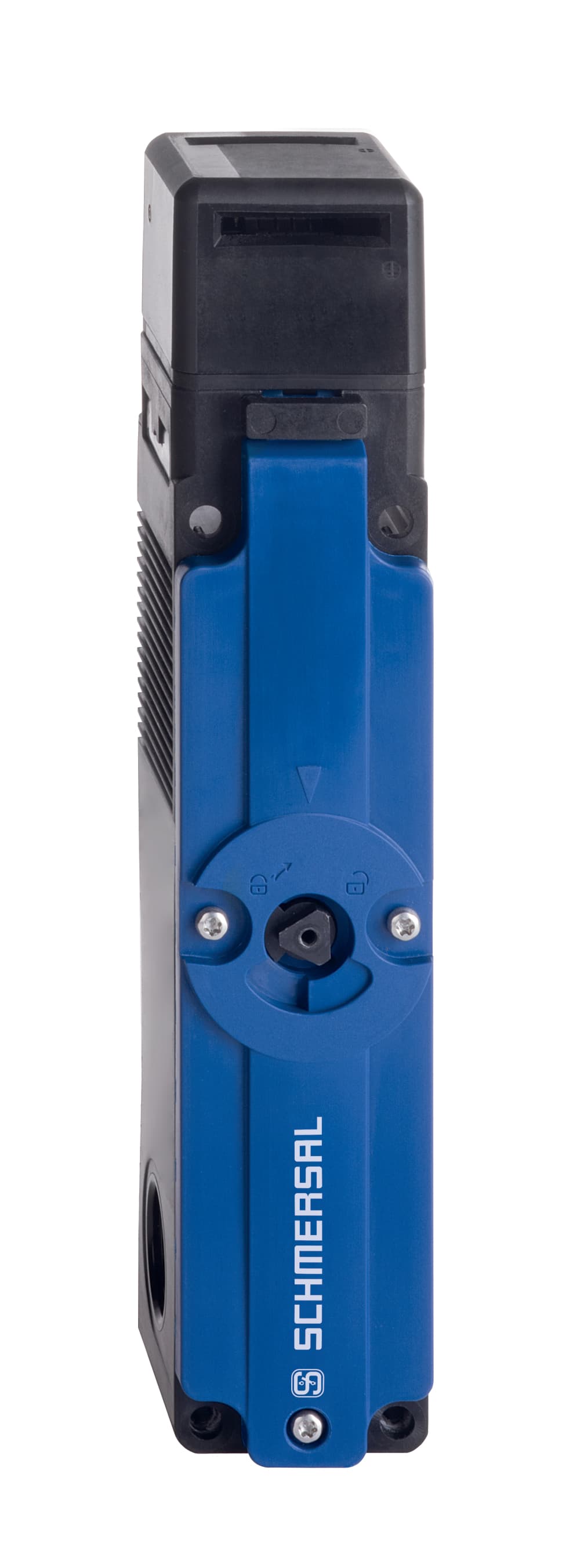

AZM150SK-02/02R-230 Schmersal Safety Switches

Product Details

• Number of safety contacts
  4
• Coding level according to ISO 14119
  Low
• Terminal Connector
  Screw terminals
• Storage and transport temperature, minimum
  -40 °C
• Switching element
  Opener (NC)
• Manual release
  Yes
• Clamping force in accordance with ISO14119 Fzh
  1,500 N
• Cable section, maximum
  1 x 2.5 mm²
• Rated impulse withstand voltage Uimp
  4 kV
• Switching principle
  Creep circuit element
• Number of actuating directions
  2
• Mounting
  Screws
• Width of sensor
  40 mm
• Rated insulation voltage Ui
  300 V
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Power to unlock
  Yes
• Actuating speed, maximum
  0.2 m/s
• Height of sensor
  204 mm
• Electrical power consumption, maximum
  8.5 W
• Standards
  EN 60947-5-1, EN ISO 14119
Mechanical life, minimum
1,000,000 Operations
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Storage and transport temperature, maximum
+85 °C
Ambient temperature, minimum
-25 °C
Gross weight
579.3 g
Clamping force, maximum Fmax
1,950 N
Cable entry
3 x M20 x 1,5
Rated control voltage
230 VAC
Switching frequency
1,000 /h
Active principle
electromechanical
Positive break force, minimum
40 N
Cable section, minimum
1 x 0.25 mm²
Thermal test current
5 A
Utilisation category DC-13
2.5 A
Material of the contacts, electrical
Silver
positive break travel
10 mm
Ambient temperature, maximum
+55 °C
Enclosure material
Thermoplastic, Polyamide PA 6 GF
Latching force, approx.
50 N
Length of sensor
48 mm
Utilisation category AC-15
3 A
