AZ 200CC-T-1P2P Schmersal Safety Switches

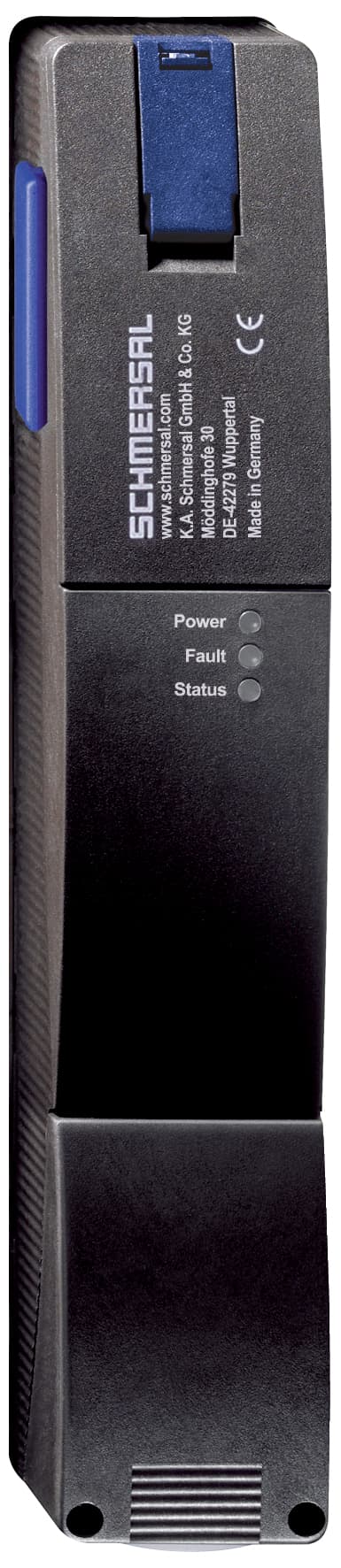

AZ 200CC-T-1P2P on Applied Automation
Schmersal

Part#:AZ 200CC-T-1P2P

Alt. Part#:101182988

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

Safety switch with separate actuator (archive); Spring pulley connection; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; 3 LEDs to show operating conditions; Sensor technology permits an offset between actua

Product Details

  • Enclosure material
    Glass-fibre, reinforced thermoplastic
  • Latching force
    30 N
  • Ensured switch distance ON Sao
    4 mm
  • Height of sensor
    220 mm
  • Storage and transport temperature, minimum
    -25 °C
  • Operating current
    50 mA
  • Versions
    p-type
  • Integral System Diagnostics, status
    Yes
  • Cable section, minimum
    0.25 mm²
  • Switch distance
    6.5 mm
  • Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • No-load supply current I0
    100 mA
  • Switching frequency, approx.
    1 Hz
  • Reaction time, maximum
    60 ms
  • Short-circuit recognition
    Yes
  • Terminal Connector
    Spring pulley connection
  • Wire cross-section, maximum
    15 AWG
  • Restistance to shock
    30 g / 11 ms
  • Switching thresholds
    −3 V … 5 V (Low), 15 V … 30 V (High)
  • Active principle
    Non-contact
  • Number of safety contacts
    2
  • Repeat accuracy R R
    0.5 mm
  • Wire cross-section, minimum
    23 AWG
  • Relative humidity, maximum
    95 %
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • Current, Utilisation category DC13
    0.05 A
  • Duration of risk, maximum
    120 ms
  • Safety functions
    Yes
  • Ensured switch distance OFF Sar
    30 mm
  • Length of sensor
    50 mm
  • Note (Relative humidity)
    non-condensing
  • Overvoltage category
    III
  • Current leakage Ir
    0.5 mA
  • Standards
    IEC 61508, IEC 60947-5-3, EN ISO 13849-1
  • Series-wiring
    Yes
  • Note (Cable section)
    All indications about the cable section are including the conductor ferrules.
  • Protection rating
    II
  • Rated insulation voltage Ui
    32 VDC
  • Rated operating current (safety outputs)
    250 mA
  • Actuator monitored
    Yes
  • Mechanical life, minimum
    1,000,000 Operations
  • Actuating speed, maximum
    0.2 m/s
  • Ambient temperature, minimum
    -25 °C
  • Cable section, maximum
    1.5 mm²
  • Storage and transport temperature, maximum
    +85 °C
  • Rated operating voltage, minimum
    20.4 VDC
  • Voltage drop Ud, maximum
    4 V
  • Short circuit detection
    Yes
  • Hysteresis (Switch distance), maximum
    1.5 mm
  • Ambient temperature, maximum
    +70 °C
  • Degree of pollution to VDE 0100
    3
  • Time to readiness, maximum
    4,000 ms
  • Gross weight
    345 g
  • Degree of protection
    IP67 to EN 60529
  • Width of sensor
    40 mm
  • Relative humidity, minimum
    30 %
  • Rated operating voltage, maximum
    26.4 VDC
  • Voltage, Utilisation category DC13
    24 VDC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
