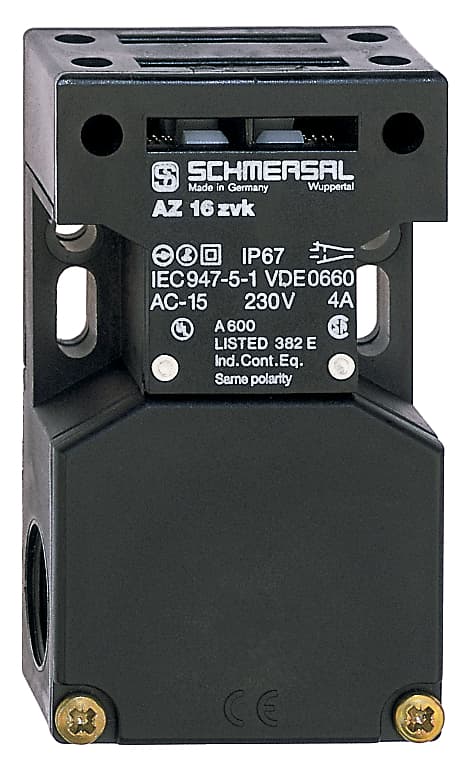

AZ 16-12ZVRK-M20-2254 Schmersal Safety Switches
Part#:AZ 16-12ZVRK-M20-2254
Alt. Part#:101164456
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
Safety switch with separate actuator; 3 cable entries M 20 x 1.5; Large wiring compartment; Thermoplastic enclosure; Double-insulated; 52 mm x 90 mm x 30 mm; Universal coding; Long life; High level of contact reliability with low voltages and currents; In
Product Details
- Number of auxiliary contacts 1
- Coding level according to ISO 14119 Low
- Cable section, maximum 2.5 mm²
- Rated impulse withstand voltage Uimp 6 kV
- positive break travel 8 mm
- Terminal Connector Screw connection
- Length of sensor 30 mm
- Thermal test current 10 A
- Actuating speed, maximum 2 m/s
- Mechanical life, minimum 1,000,000 Operations
- Width of sensor 52 mm
- Switching principle Creep circuit element
- Material of the contacts, electrical Silver
- Number of cable glands 3
- Ambient temperature, maximum +80 °C
- Latching force 30 N
- Gross weight 115 g
- Switching element NO contact, NC contact
- Current, Utilisation category DC13 4 A
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Cable entry 3 x M20 x 1,5
- Rated insulation voltage Ui 500 V
- Voltage, Utilisation category DC13 24 VDC
- Number of safety contacts 2
- Cable section, minimum 0.25 mm²
- Ambient temperature, minimum -30 °C
- Voltage, Utilisation category AC15 230 VAC
- Positive break force, minimum 10 N
- Height of sensor 90 mm
- Current, Utilisation category AC-15 4 A
- Degree of protection IP67 to EN 60529
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZ 16-12ZVRK-M20-2254 on Applied Automation is $139.00. Order now.
