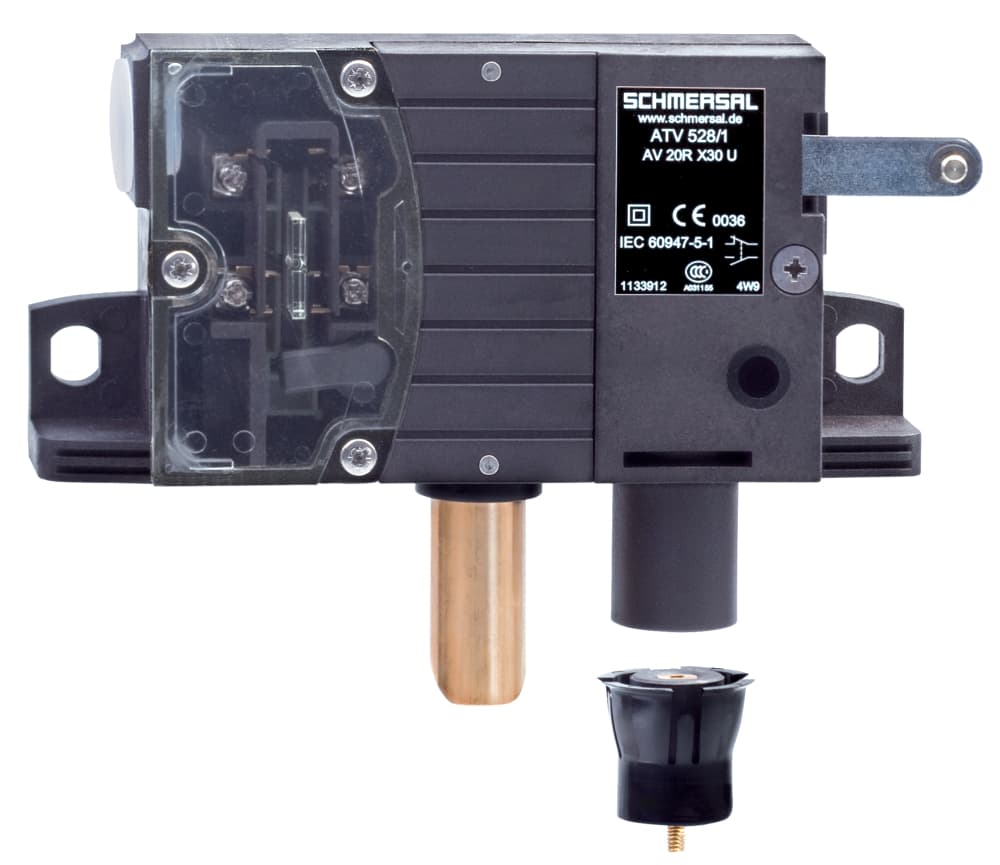

AV20LHX20U-GB215 Schmersal Electronic Components

Product Details

• Material of the contacts, electrical
  Silver
• Enclosure material
  Glass-fibre reinforced thermoplastic, self-extinguishing
• Cable entry
  without cable gland
• Ambient temperature, minimum
  -15 °C
• Switching principle
  Slow action
• Switching element
  NC contact, NO contact
• Manual release
  Yes
• Actuating element
  Roller lever H65
• Diameter of the latching bolt
  18 mm
• Utilisation category DC-13
  2 A
• With fail-safe locking system (Y/N)
  Yes
• Mounting
  rear-side mounting holes
• Depth
  37 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Number of auxiliary contacts
  1
• Permanent magnet
  Ceramic oxide magnets with high coercive field strength
• Height
  80 mm
• Ambient temperature, maximum
  +70 °C
• Gross weight
  720 g
• Width
  165 mm
Latching bolt bevelling, bottom
45 °
Safety functions
Yes
Number of safety contacts
1
X-dimension of the latching bolt
20 mm
Thermal test current
10 A
Standards
EN 81-20, EN 81-50
Number of door leafs
1
Degree of protection
IP54
Utilisation category AC-15
230 VAC
Material of the latching bolt
Brass
Orientation / Alignment
left-hand model
Note (X-dimension of the latching bolt)
The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
Rated insulation voltage Ui
500 VAC
