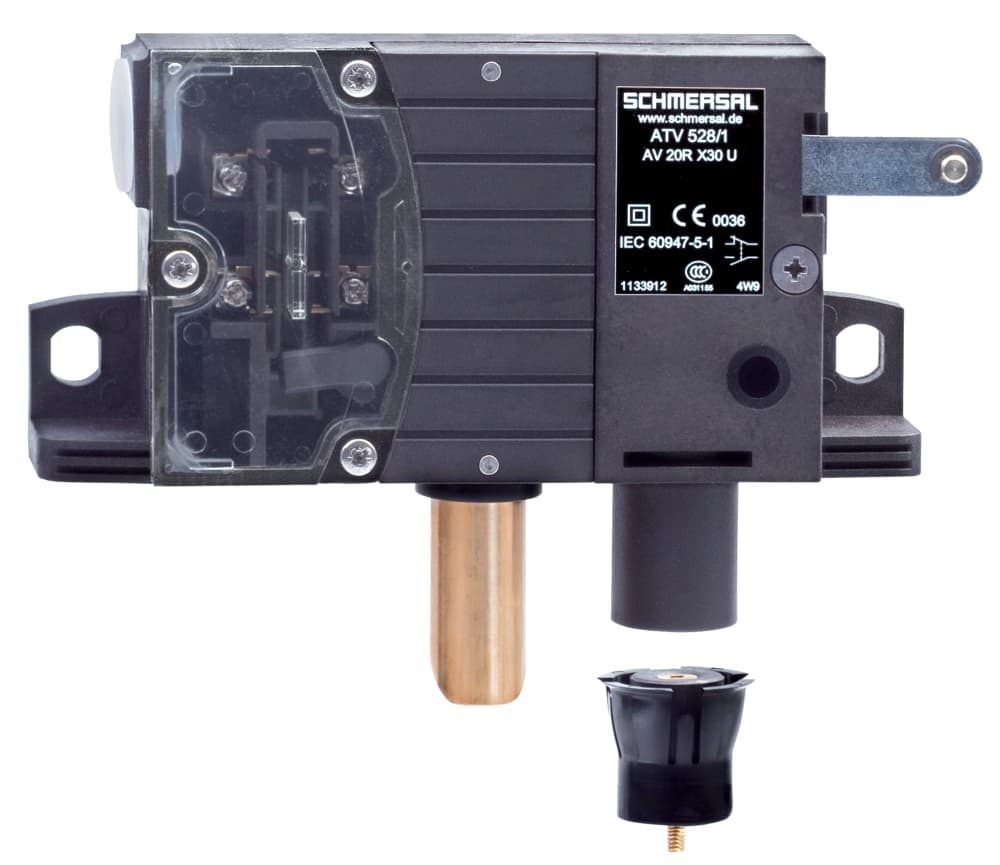

AV20RX11.5U-GB215 Schmersal Electronic Components

Product Details

• Enclosure material
  Glass-fibre reinforced thermoplastic, self-extinguishing
• Mounting
  rear-side mounting holes
• Rated impulse withstand voltage Uimp
  6 kV
• Number of auxiliary contacts
  1
• Number of safety contacts
  1
• Ambient temperature, minimum
  -15 °C
• Standards
  EN 81-20, EN 81-50
• Cable entry
  without cable gland
• Diameter of the latching bolt
  18 mm
• Thermal test current
  10 A
• Gross weight
  652 g
• Manual release
  Yes
• Orientation / Alignment
  right-hand model
• Depth
  37 mm
• Rated insulation voltage Ui
  500 VAC
• Switching principle
  Slow action
• Width
  165 mm
• Switching element
  NC contact, NO contact
• Safety functions
  Yes
• Actuating element
  Roller lever H65
Latching bolt bevelling, bottom
45 °
Material of the contacts, electrical
Silver
Utilisation category AC-15
230 VAC
With fail-safe locking system (Y/N)
Yes
Material of the latching bolt
Brass
Number of door leafs
1
Height
80 mm
Permanent magnet
Ceramic oxide magnets with high coercive field strength
X-dimension of the latching bolt
11.5 mm
Note (X-dimension of the latching bolt)
The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
Degree of protection
IP54
Utilisation category DC-13
2 A
Ambient temperature, maximum
+70 °C
