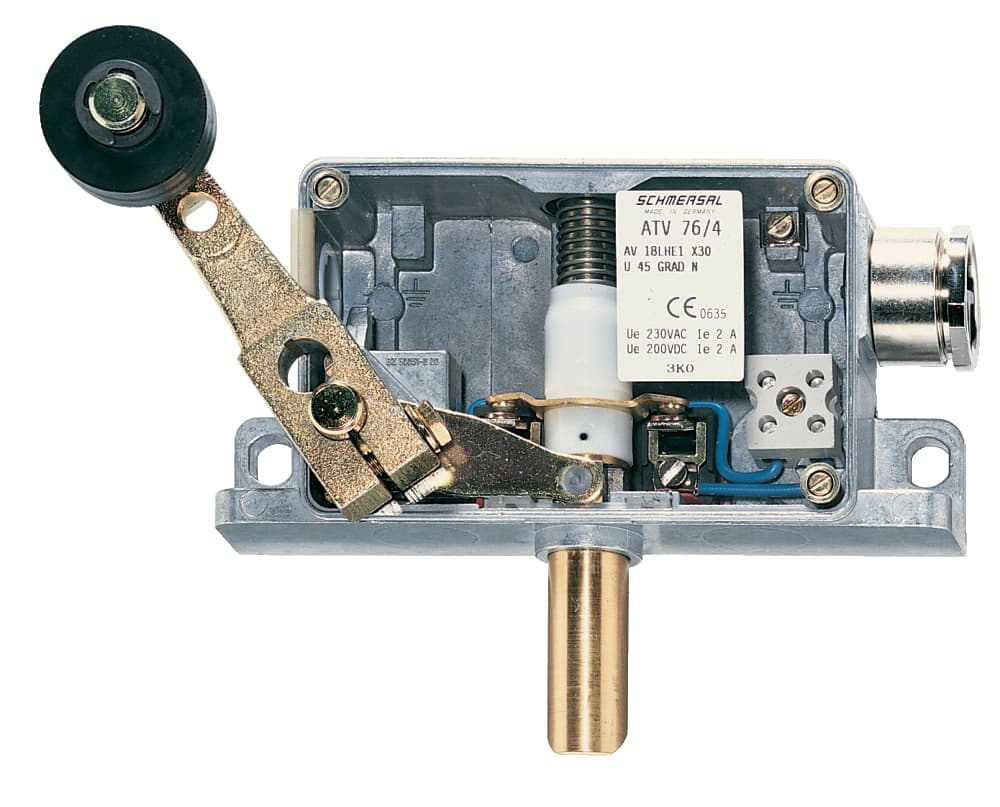

AV18LKX11.5U-GB215 Schmersal Electronic Components

Product Details

• Material of the contacts, electrical
  Silver
• Actuating element
  Pull strap
• Note (X-dimension of the latching bolt)
  The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
• Utilisation category AC-15
  2 A
• Material of the latching bolt
  Brass
• X-dimension of the latching bolt
  11.5 mm
• Degree of protection
  IP20
• Switching principle
  Slow action
• With fail-safe locking system (Y/N)
  No
• Mounting
  rear-side mounting holes
• Rated insulation voltage Ui
  400 VAC
• Utilisation category DC-13
  200 VDC
• Number of door leafs
  1
• Cable entry
  without cable gland
• Latching bolt bevelling, bottom
  45 °
• Switching element
  NC contact, NO contact
• Manual release
  Yes
• Height
  80 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Orientation / Alignment
  left-hand model
Safety functions
Yes
Ambient temperature, minimum
-15 °C
Enclosure material
Light alloy die-casting
Standards
EN 81-20, EN 81-50
Depth
37.5 mm
Thermal test current
10 A
Number of safety contacts
1
Width
165 mm
Diameter of the latching bolt
18 mm
Ambient temperature, maximum
+70 °C
