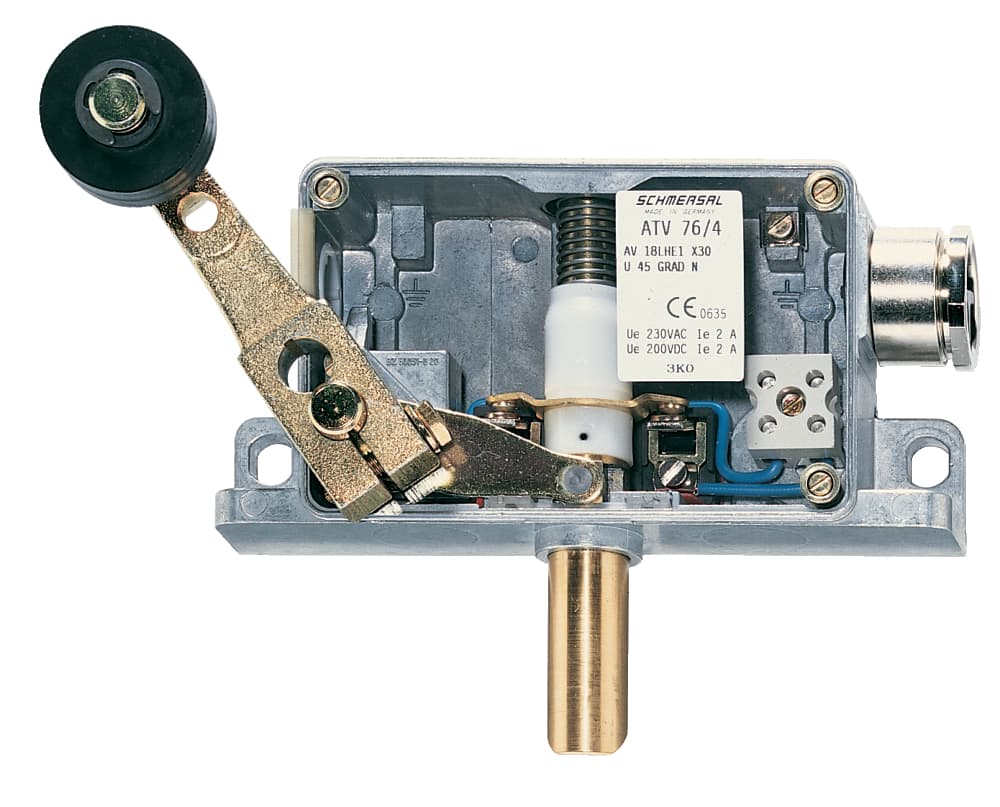

AV18LKX30U-GB215 Schmersal Electronic Components

Product Details

• Number of door leafs
  1
• Standards
  EN 81-20, EN 81-50
• Mounting
  rear-side mounting holes
• Note (X-dimension of the latching bolt)
  The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
• Ambient temperature, maximum
  +70 °C
• Switching element
  NC contact, NO contact
• With fail-safe locking system (Y/N)
  No
• Material of the latching bolt
  Brass
• Cable entry
  without cable gland
• Material of the contacts, electrical
  Silver
• Number of safety contacts
  1
• Rated insulation voltage Ui
  400 VAC
• Orientation / Alignment
  left-hand model
• Width
  165 mm
• X-dimension of the latching bolt
  30 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Switching principle
  Slow action
• Enclosure material
  Light alloy die-casting
• Diameter of the latching bolt
  18 mm
• Thermal test current
  10 A
Manual release
Yes
Safety functions
Yes
Ambient temperature, minimum
-15 °C
Actuating element
Pull strap
Latching bolt bevelling, bottom
45 °
Height
80 mm
Degree of protection
IP20
Utilisation category AC-15
2 A
Depth
37.5 mm
Utilisation category DC-13
2 A
