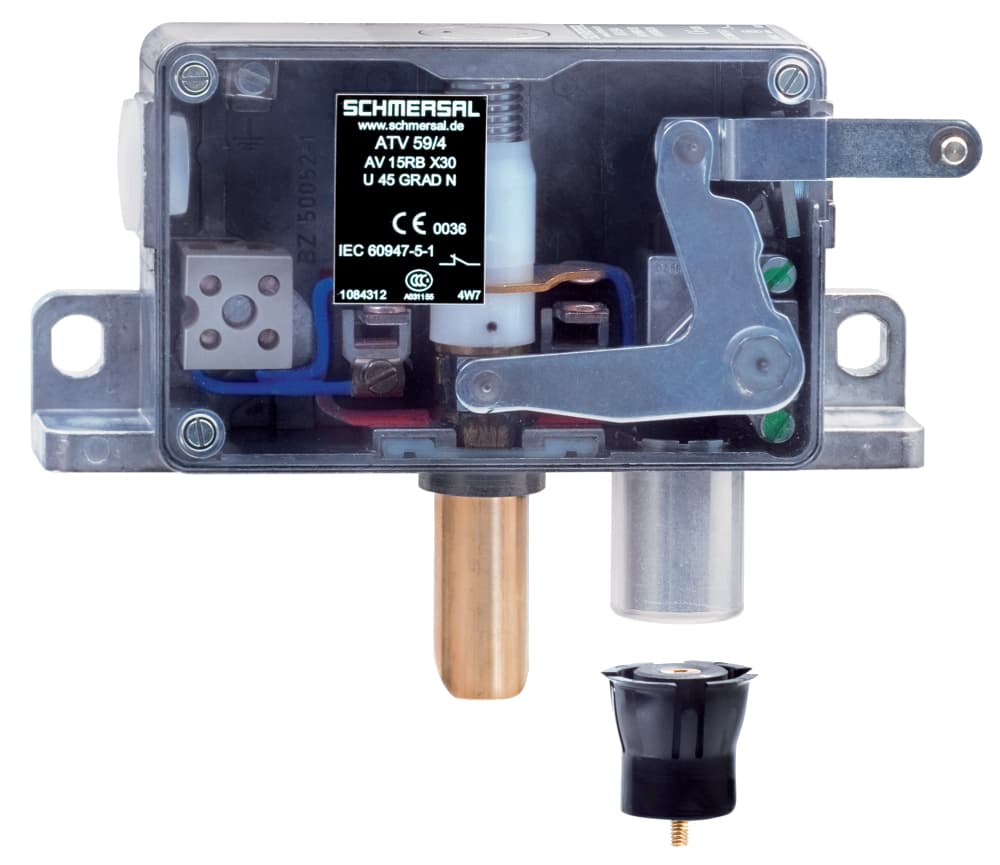

AV 18RB2KX20U 45 GR. N Schmersal Electronic Components

Product Details

• Height
  80 mm
• Manual release
  Yes
• Mounting
  rear-side mounting holes
• Ambient temperature, minimum
  -15 °C
• Material of the contacts, electrical
  Silver
• Enclosure material
  Light alloy die-casting
• Number of safety contacts
  1
• Number of door leafs
  1
• Material of the latching bolt
  Brass
• Standards
  EN 81-20, EN 81-50
• Gross weight
  1,010 g
• Orientation / Alignment
  right-hand model
• Note (Cable entry)
  Graphic representation: left version mirror image
• Cable entry
  without cable gland
• Width
  165 mm
• Number of auxiliary contacts
  1
• With fail-safe locking system (Y/N)
  No
• Safety functions
  Yes
• Actuating element
  Roller lever H65 and bearing block B2
• Depth
  37.5 mm
Degree of protection
IP20
Diameter of the latching bolt
18 mm
X-dimension of the latching bolt
20 mm
Ambient temperature, maximum
+70 °C
Note (X-dimension of the latching bolt)
The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
Latching bolt bevelling, bottom
45 °
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 VAC
Thermal test current
10 A
Switching principle
Slow action
Switching element
NC contact, NO contact
Utilisation category AC-15
2 A
Utilisation category DC-13
2 A
