W7077D4332W ROSS Controls Electronic Components
Part#:W7077D4332W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

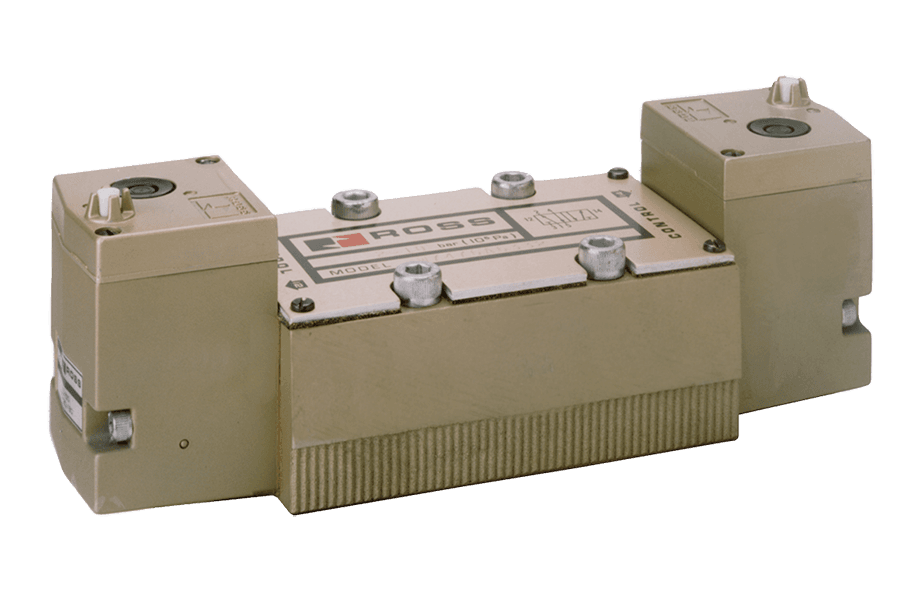

ANSI Size 4, W70 Series, 5/3 Open Center Solenoid Valve, Spool & Sleeve, 24 VDC
Product Details
- Application General
- Manual Override Non-locking
- Ambient Temperature (Celcius) 4 to 50
- Seal Material Buna-N
- Length 3.46 in (88 mm)
- Mounting Base Mount
- Power Consumption 20 watts
- Poppet/Spool Material Stainless Steel
- Width 9.79 in (249 mm)
- Default Position Normally Open
- Valve Body Material Cast Aluminum
- Avg Cv 4.2
- Height 3.96 in (101 mm)
- Valve Standard ANSI
- Fluid Media Filtered air
- Size 4
- Function 5/3-Way, Double Solenoid
- Usage Models W70
- Operating Pressure (bar) Vacuum to 10
- Length (mm) 88
- Weight 6.5 lb (2.9 kg)
- Connection Hardwired
- Voltage 24 VDC
- Pilot Type Internal/External
- Weight (kg) 2.9
- Actuation Electrical
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Pilot Supply Minimum Equal to or greater than inlet pressure
- Width (mm) 249
- Duty Rating Continuous Duty
- Operating Pressure Vacuum to 150 psig (10 bar)
- Center Position Open
- Valve Type Directional Control
- Media Temperature 40 to 175 F (4 to 80 C)
- Return Detented
- Height (mm) 101
- Construction Spool and Sleeve
- Media Temperature (Celcius) 4 to 80
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W7077D4332W on Applied Automation is $571.25. Order now.
