W7076C8332Z ROSS Controls Electronic Components
Part#:W7076C8332Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

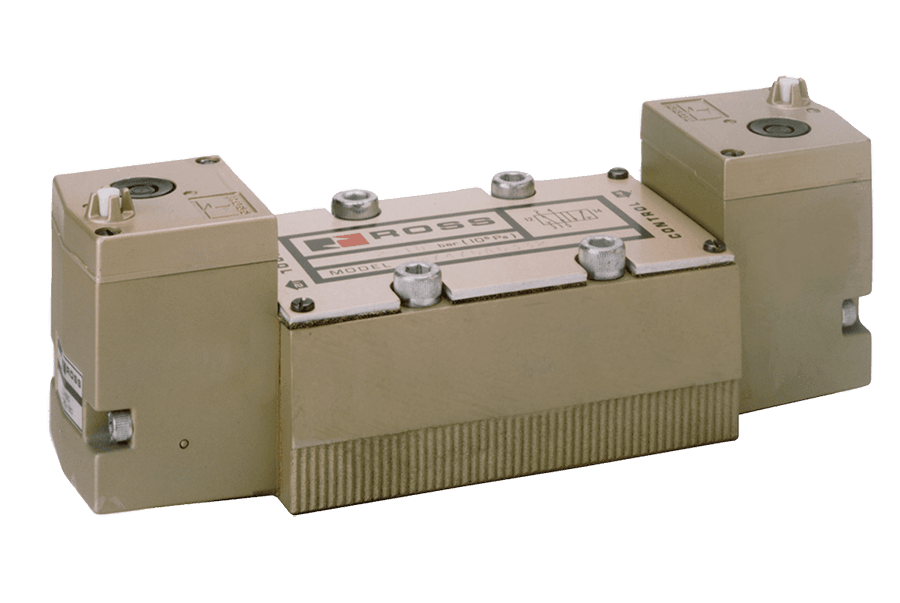

ANSI Size 20, W70 Series, 5/2 Double Solenoid Valve, Spool & Sleeve, 110/120 VAC
Product Details
- Weight (kg) 6.8
- Width (mm) 417
- Height 4.08 in (404 mm)
- Function 5/2-Way, Double Solenoid
- Width 16.42 in (417 mm)
- Weight 15.8 lb (6.8 kg)
- Length (mm) 141
- Height (mm) 404
- Voltage 110/120 VAC
- Avg Cv 22.0
- Length 5.57 in (141 mm)
- Pilot Type Internal/External
- Size 20
- Power Consumption 140 VA inrush, 30 VA holding on 50 or 60 Hz
- Return Detented
- Seal Material Buna-N
- Fluid Media Filtered air
- Poppet/Spool Material Stainless Steel
- Media Temperature 40 to 175 F (4 to 80 C)
- Valve Body Material Cast Aluminum
- Operating Pressure Vacuum to 150 psig (10 bar)
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Operating Pressure (bar) Vacuum to 10
- Pilot Supply Minimum Equal to or greater than inlet pressure
- Ambient Temperature (Celcius) 4 to 50
- Media Temperature (Celcius) 4 to 80
- Duty Rating Continuous Duty
- Manual Override Non-locking
- Application General
- Default Position Normally Open
- Construction Spool and Sleeve
- Valve Type Directional Control
- Connection Hardwired
- Usage Models W70
- Mounting Base Mount
- Valve Standard ANSI
- Actuation Electrical
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
