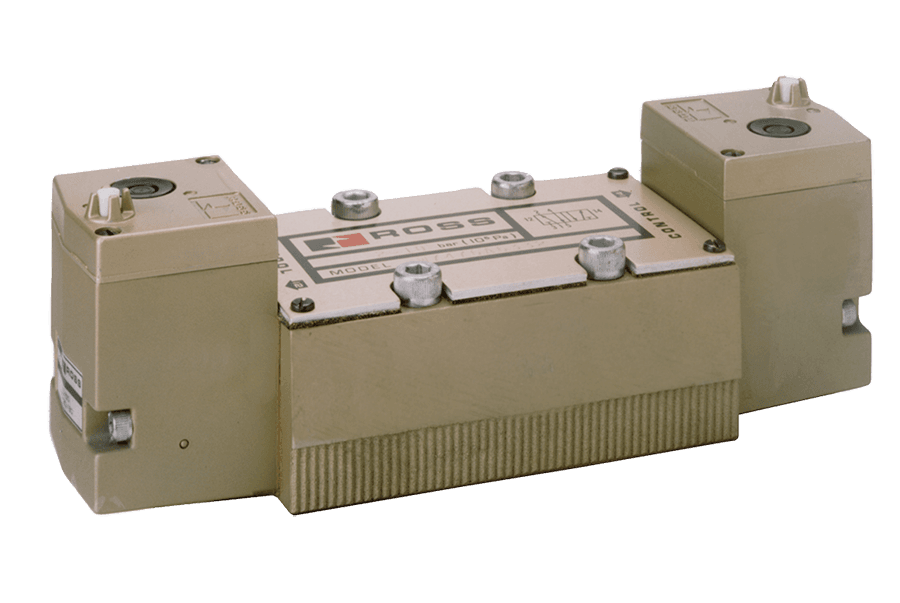

W7076A3331W ROSS Controls Electronic Components
Part#:W7076A3331W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
ANSI Size 2.5, W70 Series, 5/2 Single Solenoid Valve, Spool & Sleeve, 24 VDC
Product Details
- Valve Standard ANSI
- Media Temperature 40 to 175 F (4 to 80 C)
- Pilot Supply Minimum Equal to or greater than inlet pressure
- Height (mm) 91
- Default Position Normally Open
- Duty Rating Continuous Duty
- Actuation Electrical
- Manual Override Non-locking
- Poppet/Spool Material Stainless Steel
- Weight (kg) 1.4
- Connection Hardwired
- Voltage 24 VDC
- Function 5/2-Way, Single Solenoid
- Application General
- Avg Cv 2.5
- Operating Pressure Vacuum to 150 psig (10 bar)
- Pilot Type Internal/External
- Mounting Base Mount
- Fluid Media Filtered air
- Media Temperature (Celcius) 4 to 80
- Weight 3.0 lb (1.4 kg)
- Return Spring
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Length (mm) 67
- Width 7.25 in (184 mm)
- Seal Material Buna-N
- Construction Spool and Sleeve
- Ambient Temperature (Celcius) 4 to 50
- Length 2.63 in (67 mm)
- Width (mm) 184
- Usage Models W70
- Power Consumption 20 watts
- Operating Pressure (bar) Vacuum to 10
- Height 3.57 in (91 mm)
- Valve Type Directional Control
- Size 2.5
- Valve Body Material Cast Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W7076A3331W on Applied Automation is $323.00. Order now.
