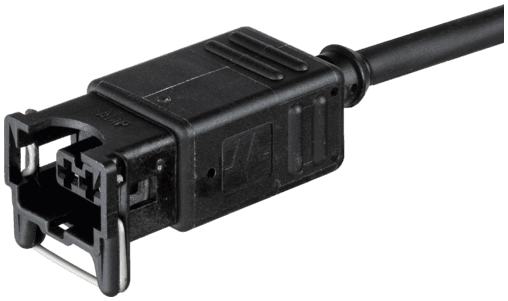

7072-70061-7500300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  163 g
• Series
  Connector Systems
• Locking material
  Stainless steel 1.4305 (V2A)
• Single wire Ø (core)
  0.2 mm
• Shield
  no
• Cable length
  3 m
• Protection
  IP65 inserted and tightened (EN 60529)
• Diameter (core)
  2× 0.75 mm²
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Temperature range
  -25...+85 °C, depending on cable quality
• Stranding combination
  2 wires twisted
• Nominal voltage
  300 V AC
• Housing
  Black plastic, flame retardant
• Cable identification
  750
• Outer-Ø (jacket)
  5.9 mm ±5%
• Form
  70061
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Material (jacket)
  PUR/PVC
• Product article number of manufacturer
  7072-70061-7500300
• Operating voltage
  12...24 V AC/DC
Approval (cable)
CE conform
Material (wire isolation)
PVC
Temperature range (mobile)
-5...+80 °C
Operating current per contact
max. 4 A
Material (wire)
Cu wire, bare
Color (jacket)
black
LED display
(yellow)
AWG
similar to AWG 18
Test voltage
2000 V AC
Current consumption
approx. 12 mA
Cable weight [g/m]
48,4 g
Color/numbering of wires
br, bl
Bend radius (moving)
15× outer Ø
Material
PUR
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Temperature range (fixed)
-40...+80 °C
