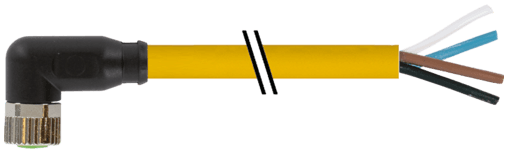

7000-08061-0110500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  166 g
• Series
  Connector Systems
• Rated surge voltage
  1.5 kV
• Material
  PUR
• Temperature range
  -25...+85 °C, depending on cable quality
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Shore hardness (jacket)
  85 ±5 A
• Operating voltage
  max. 50 V AC/60 V DC
• Compression gland
  M8 (SW9)
• AWG
  similar to AWG 24
• Shore hardness (wire isolation)
  45 ±5 D
• Test voltage
  2000 V AC
• Material group
  IEC 60664-1, category I
• suitable for corrugated tube (internal Ø)
  6.5 mm
• Resistor (core)
  max. 79 Ω/km (20 °C)
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Outer-Ø (jacket)
  4.8 mm ±5%
• Bend radius (moving)
  10× outer Ø
• Operating voltage (only UL listed)
  30 V AC/DC
• Material (gasket)
  FKM
Material (wire)
Cu wire, bare
Material (wire isolation)
PVC
Bend radius (fixed)
5× outer Ø
No. of poles
4
Material (contact surface)
Au
Pollution Degree
3
Cable Type
1 (PVC)
Cable weight [g/m]
34,76 g
Shield
no
Jacket Color
yellow
Temperature range (mobile)
-5...+80 °C
Form
08061
Material (contact)
Copper alloy
Outer Ø
4.8 mm ±5%
Single wire Ø (core)
0.15 mm
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Current load capacity
to DIN VDE 0298-4
Cable length
5 m
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
No./diameter of wires
4× 0.25 mm²
Diameter (core)
4× 0.25 mm²
chemical resistance
good resistance to oil, gasoline and chemicals
Product article number of manufacturer
7000-08061-0110500
Operating current per contact
max. 4 A
Locking material
Zinc die casting, matte nickel plated
Wire isolation
PVC (br, wh, bl, bk)
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Color/numbering of wires
br, bk, bl, wh
Temperature range (fixed)
-30...+80 °C
Locking of ports
Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
Mounting method
inserted, tightened
Stripping length (jacket)
20 mm
Construction (core)
14× 0.15 mm (multi-strand wire class 5)
Color (jacket)
yellow
LED display
no
Standards
DIN EN 61076-2-104 (M8)
Cable identification
011
Stranding combination
4 wires twisted
Material (jacket)
PVC
Nominal voltage
UL 300 V AC
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
