3000-16023-3100005 Murr Elektronik Control Circuits
Part#:3000-16023-3100005
Alt. Part#:6652050
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

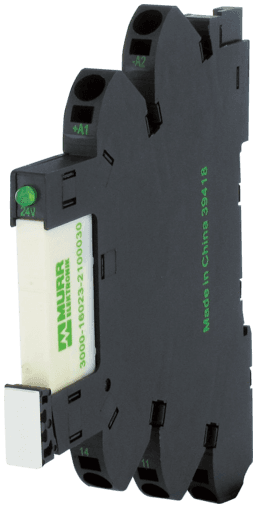

3000-16023-3100005 Murrelektronik - MIRO 6.2 PLUGGABLE COMPL.MODULE OUTPUT RELAY, IN: 12 VAC/DC - OUT: 250 VAC/DC / 6 A, 1 C/O contact / - 6,2 mm spring clamp
Product Details
- Weight 32 g
- Series Interface Modules
- AC-15 3 A (24/110 V AC); 1.5 A (230 V AC)
- LED display LED (green)
- Test isolation voltage 250 V
- Power rating (voltage dependent) max. 1500 VA/180 W
- Product article number of manufacturer 3000-16023-3100005
- Temperature range -25...+60 °C
- Switching voltage max. 250 V AC/30 V DC
- Mounting method DIN-rail mountable (EN 60715)
- Contact material Ag Sn O2
- DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)
- Dimensions H×W×D 93×6.2×75.6 mm
- Energize/release/contact bounce time 8/4/- ms
- AC-12 6 A (24/110/230 V AC)
- Min. load current 100 mA
- Mech./ elect. life 10 000 000 switching cycles (NO) 30 000; (NC) 10 000, load dependent
- Switching frequency max. 10 Hz
- Protection IP20
- Connection voltage - current 9.8...14 V AC/DC - approx. 14.2 mA
- Switching current per output max. 6 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 3000-16023-3100005 on Applied Automation is $48.95. Order now.
