3000-33113-3020020 Murr Elektronik I/O Systems
Part#:3000-33113-3020020
Alt. Part#:3000-33113-3020012
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

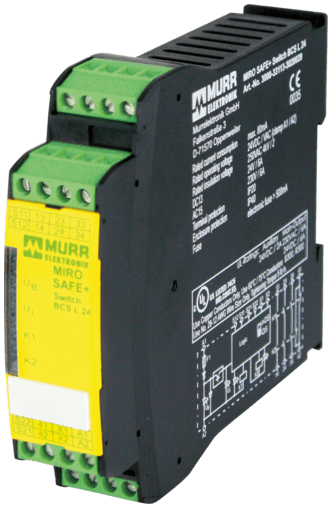

3000-33113-3020020 Murrelektronik - MIRO SAFE+ SWITCH BCS L 24, 24 VAC/DC - 3 N/O contact / 1 N/C contact, 22,5 mm screw clamps
Product Details
- Weight 230 g
- Series Field Bus System
- Temperature range -25...+60 °C (storage temperature -40...+85 °C)
- AC-15 6 A (230 V AC) STOP0
- Dimensions H×W×D 100×22.5×121 mm
- Switching current per output max. 8 A
- Mounting method DIN-rail mountable (EN 60715)
- Input current max. 4.4 VA/1.8 W
- Total current 24 A (45 °C); 18 A (55 °C); 12 A (60 °C)
- DC 99%
- No. of alarm outputs 0
- No. of auxiliary contacts 1 - (41-42)
- PL up to e
- Switching voltage max. 250 V AC/DC
- Input voltage 24 V DC (-15 +20%), 24 V AC (-15 +10%)
- SIL up to 3
- No. of safety contacts 3 - (13-14); (23-24); (33-34)
- Service life 20 years
- Connection Screw terminals
- Mech./ elect. life 10 000 000 switching cycles/load dependent
- Category up to 4
- DC-13 6 A (24 V DC) STOP0
- Contact material Ag Sn O, self cleaning, positively driven
- Safety contacts (STOP 0) max. 250 V AC/8 A; min. 10 V AC/10 mA (resist./ind.), at suitable suppression
- Product article number of manufacturer 3000-33113-3020020
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
