3000-33113-3020025 Murr Elektronik I/O Systems
Part#:3000-33113-3020025
Alt. Part#:3000-33113-3020012
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

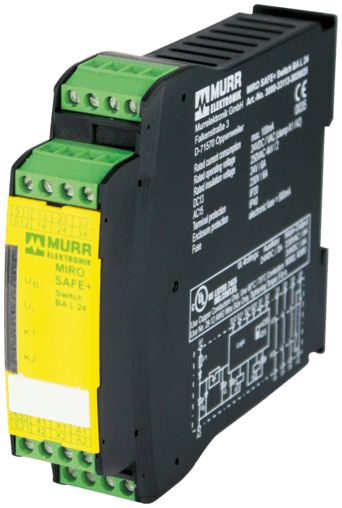

3000-33113-3020025 Murrelektronik - MIRO SAFE+ SWITCH BA L 24, 24 VAC/DC - 3 N/O contact / 1 N/C contact, 22,5 mm screw clamps
Product Details
- Weight 230 g
- Series Field Bus System
- Connection Screw terminals
- AC-15 6 A (230 V AC) STOP0
- No. of auxiliary contacts 1 - (41-42)
- Switching voltage max. 250 V AC/DC
- Switching current per output max. 8 A
- PL up to e
- Contact material Ag Sn O, self cleaning, positively driven
- Input voltage 24 V DC (-15 +20%), 24 V AC (-15 +10%)
- Total current 24 A (45 °C); 18 A (55 °C); 12 A (60 °C)
- Service life 20 years
- Mech./ elect. life 10 000 000 switching cycles/load dependent
- SIL up to 3
- Temperature range -25...+60 °C (storage temperature -40...+85 °C)
- DC 99%
- No. of alarm outputs 0
- Input current max. 4.9 VA/2.0 W
- Safety contacts (STOP 0) max. 250 V AC/8 A; min. 10 V AC/10 mA (resist./ind.), at suitable suppression
- Dimensions H×W×D 100×22.5×121 mm
- DC-13 6 A (24 V DC) STOP0
- No. of safety contacts 3 - (13-14); (23-24); (33-34)
- Product article number of manufacturer 3000-33113-3020025
- Mounting method DIN-rail mountable (EN 60715)
- Category up to 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 3000-33113-3020025 on Applied Automation is $243.75. Order now.
3000-33113-3020025 Related Documents
Manufacturer warranty
3000-33113-3020025 Murr Elektronik
$243.75
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$243.75
$243.75 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 3000-33113-3020025 with other I/O Systems products
Weight
Series
Connection
AC-15
No. of auxiliary contacts
Switching voltage
Switching current per out...
PL
Contact material
Input voltage
Selected product
3000-33113-3020025
Murr Elektronik
3000-33113-3020025 Murrelektronik - MIRO SAFE+ SWITCH BA L 24, 24 VAC/DC - 3 N/O contact / 1 N/C con...
Weight230 g
SeriesField Bus System
ConnectionScrew terminals
AC-156 A (230 V AC) STOP0
No. of auxiliary contacts1 - (41-42)
Switching voltagemax. 250 V AC/DC
Switching current per outputmax. 8 A
PLup to e
Contact materialAg Sn O, self cleaning, posi...
Input voltage24 V DC (-15 +20%), 24 V AC ...
Weight-
Series-
Connection-
AC-15-
No. of auxiliary contacts-
Switching voltage-
Switching current per output-
PL-
Contact material-
Input voltage-
About the manufacturer
Applied Automation is an authorized Murr Elektronik distributor, offering a robust selection of high-quality components engineered to drive efficiency and innovation in industrial applications. Murr Elektronik, a leader in the electronics industry, specializes in providing sophisticated automation solutions that cater to diverse sectors by integrating cutting-edge technology with unmatched enginee...
Recently viewed products
Relevant products
FAQ
What is the price of 3000-33113-3020025?
Purchase the 3000-33113-3020025 from Applied Automation at the price of $243.75. Order today.
Out if stock but available for backorder.
3000-33113-3020025 Murrelektronik - MIRO SAFE+ SWITCH BA L 24, 24 VAC/DC - 3 N/O contact / 1 N/C contact, 22,5 mm screw clamps
