E3O15F-2L012 Clippard Pneumatic Components
Part#:E3O15F-2L012
Manufacturer:Clippard
Category:Pneumatic Components
Product Lifecycle:Active
Oct 13, 2026
Product description

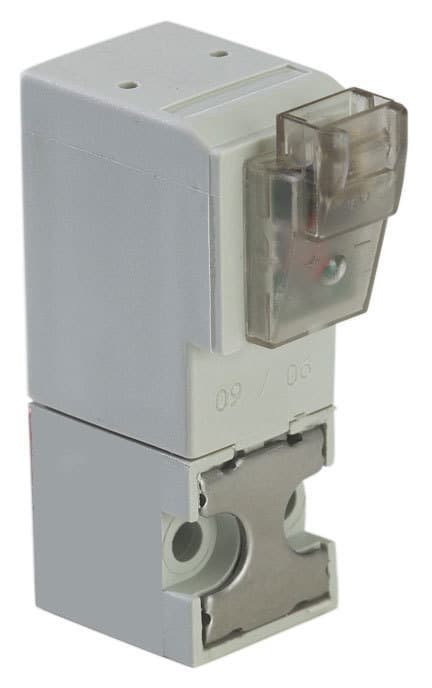

15 mm N.O. 3-way Valve, 90° Connector, 12 VDC
Product Details
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Voltage Tolerance ±10%
- Max. Flow 85 l/min @ 100 psig
- Mount 2 M3 screws
- Function 3-Way Normally-Open
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Voltage 12 VDC
- Wire Connector Molex #28139 plug with terminal insert #050013-8000
- Accessories Connector Wire with Cable: C2A-RB300 (11.8"), C2A-RB500 (19.7"), C2A-RB1000 (39.4")
- Medium Air, Water, Gas or Compatible Fluids
- Connection 2-Pin Connector 90°
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Wattage 2.0 Watts
- Response Time 6 ms nominal
- Weight 0.0850
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O15F-2L012 on Applied Automation is $32.84. Order now.
E3O15F-2L012 Related Documents
Similar products from: Clippard Pneumatic Components
This item can ship in 3-5 days!
Manufacturer warranty
E3O15F-2L012 Clippard
$32.84
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$1,642.00
$32.84 each
Minimum order quantity for this item is 50.
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E3O15F-2L012 with other Pneumatic Components products
Coil Insulation Class
Voltage Tolerance
Max. Flow
Mount
Function
Materials
Voltage
Wire Connector
Accessories
Medium
Selected product
Coil Insulation ClassF 311°F (155°C) / H356°F (18...
Voltage Tolerance±10%
Max. Flow85 l/min @ 100 psig
Mount2 M3 screws
Function3-Way Normally-Open
MaterialsStainless steel core & sprin...
Voltage12 VDC
Wire ConnectorMolex #28139 plug with termi...
AccessoriesConnector Wire with Cable: C...
MediumAir, Water, Gas or Compatibl...
Coil Insulation Class-
Voltage Tolerance90 to 120% of Rated Voltage
Max. Flow-
MountManifold Mount
Function3-Way Universally-Ported
Materials-
Voltage24 VDC
Wire Connector-
AccessoriesManifolds: Single, Side Port...
MediumClean, Dry Air and Compatibl...
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Coil Insulation Class-
Voltage Tolerance-
Max. Flow-
MountManifold
Function3-Way Fully-Ported, Universa...
Materials-
Voltage24 VDC
Wire Connector-
Accessories-
MediumCompatible Fluids (40 micron...
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
About the Product Category
Components that are pneumatic are crucial elements of a pneumatic system, using compressed air to manage movements and carry out a range of tasks in industries like manufacturing, construction, and automation.
Recently viewed products
Relevant products
FAQ
What is the price of E3O15F-2L012?
Purchase the E3O15F-2L012 from Applied Automation at the price of $32.84. Order today.
Out if stock but available for backorder.
15 mm N.O. 3-way Valve, 90° Connector, 12 VDC
