E3O15E-2T012 Clippard Electronic Components

E3O15E-2T012 on Applied Automation
Clippard

Part#:E3O15E-2T012

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

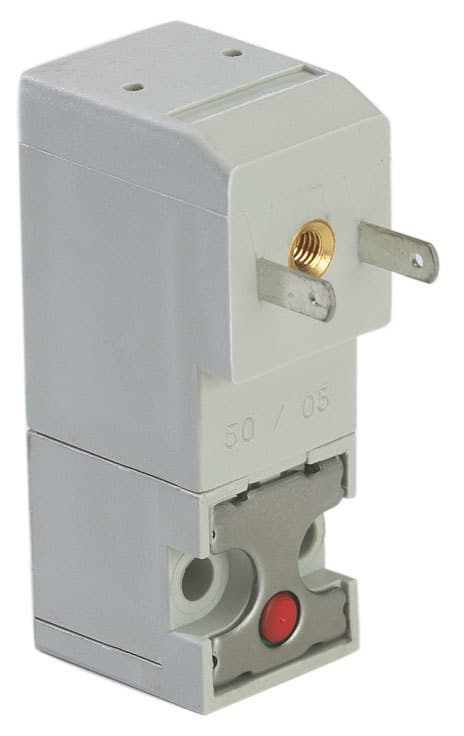

15 mm N.O. 3-way Valve, Terminal Connector, 0.043", 12 VDC

Product Details

  • Connection
    Spade Terminal
  • Wattage
    2.0 Watts
  • Max. Flow
    84 l/min @ 145 psig
  • Wire Connector
    Industrial Form Connector with 9.4 mm spade center spacing
  • Mount
    2 M3 screws
  • Accessories
    Connectors: 6-240V no LED: CC-I, CC-I-P6, CC-I-P15; 6-24V w/LED: CC-ILL, CC-ILL-P6, CC-ILL-P15; 48-110V w/LED: CC-ILM, CC-ILM-P6, CC-ILM-P15
  • Voltage Tolerance
    ±10%
  • Response Time
    6 ms nominal
  • Operating Temperature Range
    23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
  • Weight
    0.0850
  • Coil Insulation Class
    F 311°F (155°C) / H356°F (180°C)
  • Voltage
    12 VDC
  • Materials
    Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
  • Medium
    Air, Water, Gas or Compatible Fluids
  • Function
    3-Way Normally-Open

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O15E-2T012 on Applied Automation is $23.33. Order now.
