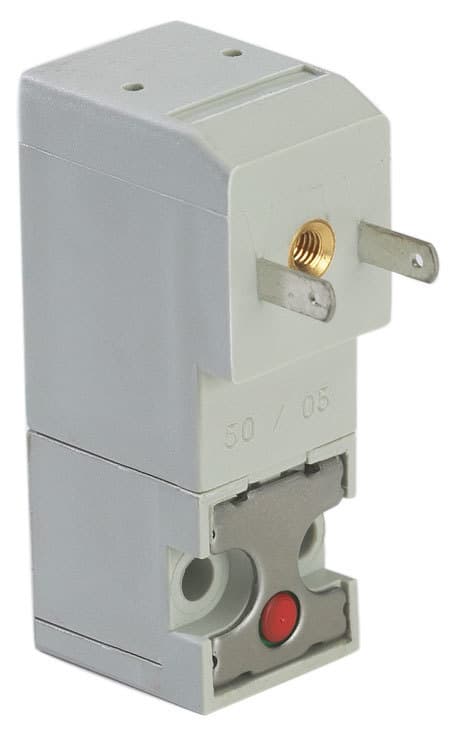

E3O15E-2T024 Clippard Pneumatic Components
Part#:E3O15E-2T024
Manufacturer:Clippard
Category:Pneumatic Components
Product Lifecycle:Active
Oct 13, 2026
Product description
15 mm N.O. 3-way Valve, Terminal Connector, 0.043", 24 VDC
Product Details
- Accessories Connectors: 6-240V no LED: CC-I, CC-I-P6, CC-I-P15; 6-24V w/LED: CC-ILL, CC-ILL-P6, CC-ILL-P15; 48-110V w/LED: CC-ILM, CC-ILM-P6, CC-ILM-P15
- Wattage 2.0 Watts
- Medium Air, Water, Gas or Compatible Fluids
- Voltage 24 VDC
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Voltage Tolerance ±10%
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Weight 0.0850
- Max. Flow 84 l/min @ 145 psig
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Mount 2 M3 screws
- Wire Connector Industrial Form Connector with 9.4 mm spade center spacing
- Function 3-Way Normally-Open
- Connection Spade Terminal
- Response Time 6 ms nominal
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O15E-2T024 on Applied Automation is $26.83. Order now.
