E3O15E-2D110 Clippard Electronic Components
Part#:E3O15E-2D110
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 10, 2026
Product description

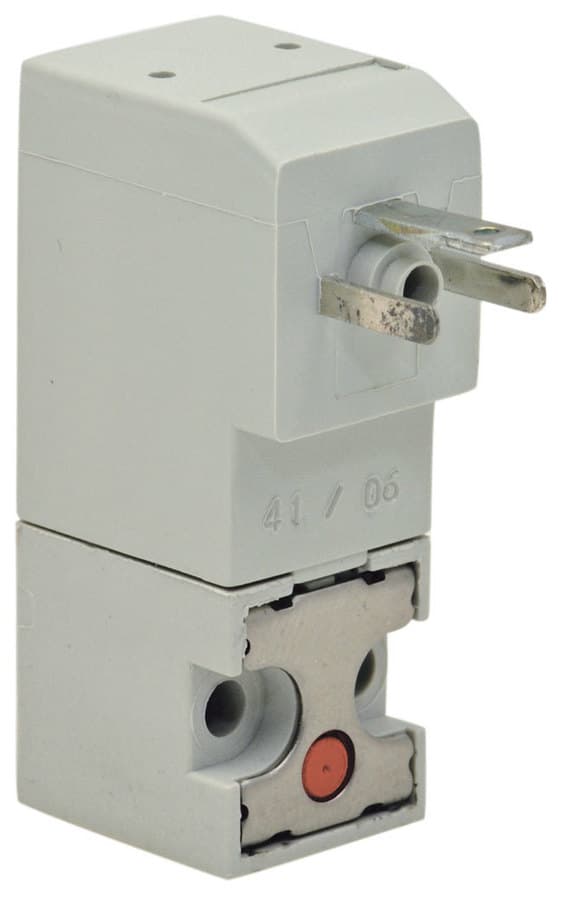

15 mm N.O. 3-way Valve, DIN Connector, 0.043", 110 VAC
Product Details
- Weight 0.0850
- Max. Flow 84 l/min @ 145 psig
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Wattage 2.0 Watts
- Medium Air, Water, Gas or Compatible Fluids
- Voltage Tolerance ±10%
- Function 3-Way Normally-Open
- Response Time 6 ms nominal
- Accessories Connectors: 6-240V no LED: CC-C, CC-C-P6, CC-C-P15; 6-24V w/LED: CC-CLL, CC-CLL-P6, CC-CLL-P15; 48-110V w/LED: CC-CLM, CC-CLM-P6, CC-CLM-P15
- Voltage 110 VAC
- Connection DIN
- Wire Connector DIN 43650 Form C with 8mm spade center spacing
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Mount 2 M3 screws
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O15E-2D110 on Applied Automation is $32.91. Order now.
E3O15E-2D110 Related Documents
This item can ship in 3-5 days!
Manufacturer warranty
E3O15E-2D110 Clippard
$32.91
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$1,645.50
$32.91 each
Minimum order quantity for this item is 50.
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E3O15E-2D110 with other Electronic Components products
Weight
Max. Flow
Operating Temperature Ran...
Wattage
Medium
Voltage Tolerance
Function
Response Time
Accessories
Voltage
Selected product
Weight0.0850
Max. Flow84 l/min @ 145 psig
Operating Temperature Range23 to 122°F (-5 to 50°C) Whe...
Wattage2.0 Watts
MediumAir, Water, Gas or Compatibl...
Voltage Tolerance±10%
Function3-Way Normally-Open
Response Time6 ms nominal
AccessoriesConnectors: 6-240V no LED: C...
Voltage110 VAC
Weight0.0850
Max. Flow-
Operating Temperature Range32 to 150°F (0 to 66°C)
Wattage-
MediumClean, Dry Air and Compatibl...
Voltage Tolerance90 to 120% of Rated Voltage
Function3-Way Universally-Ported
Response Time-
AccessoriesManifolds: Single, Side Port...
Voltage24 VDC
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Weight0.1500
Max. Flow-
Operating Temperature Range32 to 130°F (0 to 55°C) at c...
Wattage-
MediumCompatible Fluids (40 micron...
Voltage Tolerance-
Function3-Way Fully-Ported, Universa...
Response Time-
Accessories-
Voltage24 VDC
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
Recently viewed products
Relevant products
FAQ
What is the price of E3O15E-2D110?
Purchase the E3O15E-2D110 from Applied Automation at the price of $32.91. Order today.
Out if stock but available for backorder.
15 mm N.O. 3-way Valve, DIN Connector, 0.043", 110 VAC
