E3O15E-2C012 Clippard Pneumatic Components
Part#:E3O15E-2C012
Manufacturer:Clippard
Category:Pneumatic Components
Product Lifecycle:Active
Oct 13, 2026
Product description

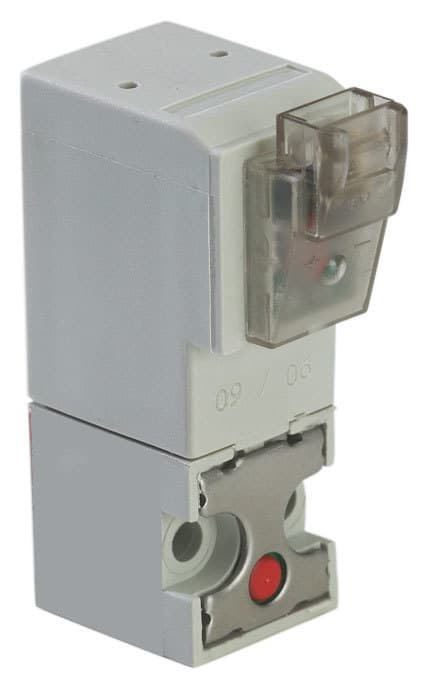

15 mm N.O. 3-way Valve, In-Line Connector, 0.043", 12 VDC
Product Details
- Max. Flow 84 l/min @ 145 psig
- Voltage 12 VDC
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Weight 0.0850
- Mount 2 M3 screws
- Accessories Connector Wire with cable: C2A-RB300 (30cm), C2A-RB500 (50cm), C2A-RB1000 (1m)
- Connection 2-Pin In-Line Connector
- Function 3-Way Normally-Open
- Response Time 6 ms nominal
- Medium Air, Water, Gas or Compatible Fluids
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Voltage Tolerance ±10%
- Wire Connector Molex #28139 plug with terminal insert #050013-8000
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Wattage 2.0 Watts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O15E-2C012 on Applied Automation is $32.84. Order now.
E3O15E-2C012 Related Documents
Similar products from: Clippard Pneumatic Components
This item can ship in 3-5 days!
Manufacturer warranty
E3O15E-2C012 Clippard
$32.84
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$1,642.00
$32.84 each
Minimum order quantity for this item is 50.
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E3O15E-2C012 with other Pneumatic Components products
Max. Flow
Voltage
Operating Temperature Ran...
Weight
Mount
Accessories
Connection
Function
Response Time
Medium
Selected product
Max. Flow84 l/min @ 145 psig
Voltage12 VDC
Operating Temperature Range23 to 122°F (-5 to 50°C) Whe...
Weight0.0850
Mount2 M3 screws
AccessoriesConnector Wire with cable: C...
Connection2-Pin In-Line Connector
Function3-Way Normally-Open
Response Time6 ms nominal
MediumAir, Water, Gas or Compatibl...
Max. Flow-
Voltage24 VDC
Operating Temperature Range32 to 150°F (0 to 66°C)
Weight0.0850
MountManifold Mount
AccessoriesManifolds: Single, Side Port...
ConnectionWire Leads, Side (Radial), 1...
Function3-Way Universally-Ported
Response Time5 to 10 ms (nominal)
MediumClean, Dry Air and Compatibl...
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Max. Flow-
Voltage24 VDC
Operating Temperature Range32 to 130°F (0 to 55°C) at c...
Weight0.1500
MountManifold
Accessories-
ConnectionWire Leads, 18"
Function3-Way Fully-Ported, Universa...
Response Time10 to 15 milliseconds
MediumCompatible Fluids (40 micron...
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
About the Product Category
Components that are pneumatic are crucial elements of a pneumatic system, using compressed air to manage movements and carry out a range of tasks in industries like manufacturing, construction, and automation.
