E3O10A-1L024 Clippard Pneumatic Components
Part#:E3O10A-1L024
Manufacturer:Clippard
Category:Pneumatic Components
Product Lifecycle:Active
Oct 13, 2026
Product description

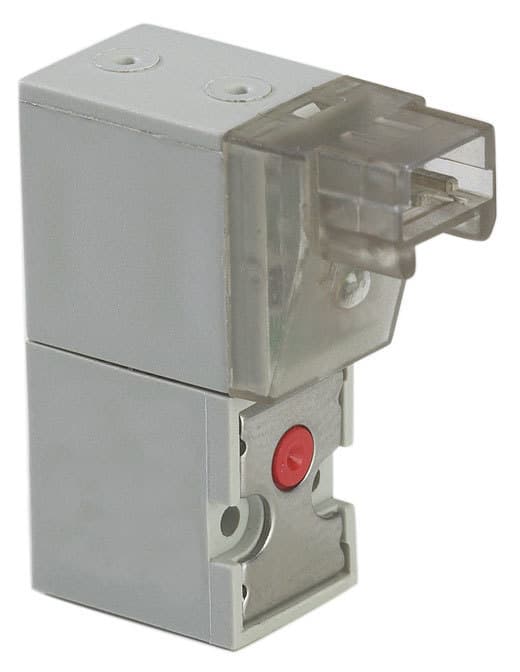

10 mm N.O. 3-way Valve, 90° Connector, 24 VDC
Product Details
- Max. Flow 13 l/min @ 100 psig
- Voltage Operating Range ±10%
- Connector Wire Molex #28139 plug with terminal insert #50212-8000
- Wattage 0.6 Watts
- Length 1.08
- Response Time 8 ms nominal
- Coil Insulation Class F 311°F (155°C)
- Connection 90° with LED
- Mount 2 M1.7 screws
- Function 3-Way Normally-Open
- Operating Pressure 0 to 100 psig (7 bar)
- Materials Stainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available.
- Medium Air, Water, Gas or Compatible Fluids
- Accessories Connector with cable: C2A-RB300 (30 cm), C2A-RB500 (50 cm), C2A-RB1000 (1 m)
- Operating Temperature Range 14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air.
- Voltage 24 VDC
- Manifolds 10 mm Manifolds
- Weight 0.0250
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O10A-1L024 on Applied Automation is $59.87. Order now.
E3O10A-1L024 Related Documents
Similar products from: Clippard Pneumatic Components
This item can ship in 3-5 days!
Manufacturer warranty
E3O10A-1L024 Clippard
$59.87
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$2,993.50
$59.87 each
Minimum order quantity for this item is 50.
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E3O10A-1L024 with other Pneumatic Components products
Max. Flow
Voltage Operating Range
Connector Wire
Wattage
Length
Response Time
Coil Insulation Class
Connection
Mount
Function
Selected product
Max. Flow13 l/min @ 100 psig
Voltage Operating Range±10%
Connector WireMolex #28139 plug with termi...
Wattage0.6 Watts
Length1.08
Response Time8 ms nominal
Coil Insulation ClassF 311°F (155°C)
Connection90° with LED
Mount2 M1.7 screws
Function3-Way Normally-Open
Max. Flow-
Voltage Operating Range-
Connector Wire-
Wattage1 Watt at Rated Voltage
Length.92
Response Time-
Coil Insulation Class-
ConnectionWire Leads, Side (Radial), 1...
Mount-
Function3-Way Universally-Ported
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Max. Flow-
Voltage Operating Range-
Connector Wire-
Wattage1.9 Watts
Length-
Response Time-
Coil Insulation Class-
ConnectionWire Leads, 18"
Mount-
Function3-Way Fully-Ported, Universa...
