DR-2M-5 Clippard Electronic Components
Part#:DR-2M-5
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 9, 2026
Product description

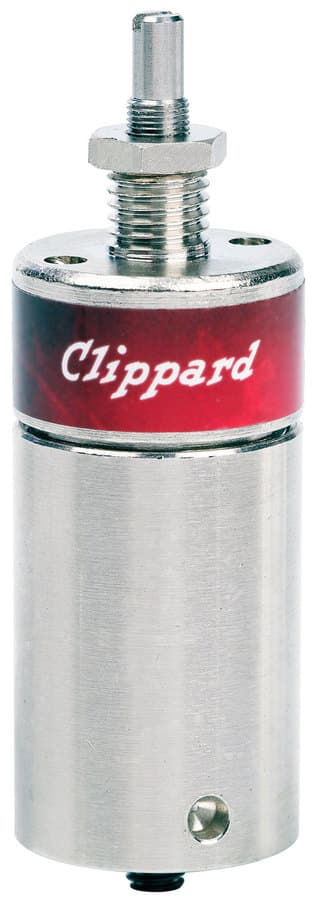

DR-2 Precision Regulator, #10-32, Manifold Mount, Relieving, 1-50 psig
Product Details
- Non-Relieving Option Standard Relieving
- Input PSI 300 psig max.
- Ports (Inlet - Outlet) #10-32 Male - Manifold
- Medium Air, Water or Oil
- Operating Temperature Range 32 to 230°F (0 to 110°C)
- Adjustment Screwdriver Slot
- Set Point Sensitivity 0.1 psig (0.007 bar)
- Mount #5/16-24 thread (M8x1.0 thread)
- Set Point Stability 0.1 psig (0.007 bar)
- Material Electroless nickel plated brass body, FKM seals, PFPE lube, stainless steel adjustment screw and spring
- Repeatability ±0.1 psig typical (±0.15 psig max) (±0.007 bar)
- Accessories Knob & Set Screw: AK2.5-B
- Max. Working Pressure 1 to 50 psig (0.07-3.4 bar)
- Unit Imperial
- Included Item(s) Nut & lockwashers
- Weight 0.3000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DR-2M-5 on Applied Automation is $68.95. Order now.
